Technical Specifications
Hardware
Ports:2
Interface:Mini SATA
Bus Type:PCI Express
Card Type:Standard Profile (LP bracket incl.)
Interface:SATA
Port Style:Integrated on Card
Industry Standards:
Serial ATA 3.0 specification
PCI Express 2.0
Chipset ID:Marvell - 88SE9230 Connector(s)
Connector Type(s):1 - PCI Express x4 Male
Internal Ports:
2 - mSATA (52 pin Mini SATA) Slot Receptacle
2 - SATA (7 pin Data) Plug Performance
Type and Rate:SATA III (6 Gbps)
Port Multiplier:Yes
LBA support:48-bit
RAID:Yes
Supported RAID Modes:
JBOD - (Just a Bunch of Disks)
RAID 1 (Mirrored Disks)
RAID 0 (Striped Disks)
RAID 10 (1+0 Striped set of Mirrored Subset)
Max Drive Capacity:Currently tested up to 4TB per drive Software
OS Compatibility:
Windows 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64)
Windows Server 2012, 2008 R2, 2003 Mac OS 10.6 and up (Tested up to 10.10)
Linux 3.5
System and Cable Requirements
Available PCI Express x4 slot (backward compatible with x8, and x16 slots
Included in Package

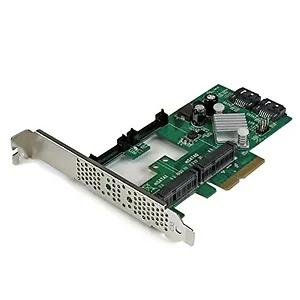

1 - PCIe mSATA/SATA Controller Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual Item Dimension (L"xW"xH"):
5.59 x 6.69 x 1.18
Weight:
0.35 lb
Warranty Information:
2 Years
