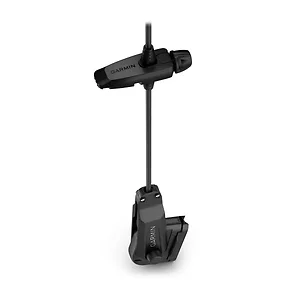

Garmin 010-01945-10 Panoptix PS22-IF Live Sonar

Garmin Panoptix™ PS22-IF Live Sonar

Enhance your fishing experience with the ultraportable Panoptix PS22-IF sonar transducer. Featuring a compact design with a new bracket and rotator, this live sonar transducer eliminates the need for bulky pole mounts. The removable lens allows for optimization of the sonar beam angle to suit various underwater conditions. With real-time fish locating capabilities, choose between two sonar modes: LiveView Forward and LiveView Down.

Specifications:

• Transducer Beamwidth: With lens: 12° x 120°, Without lens: 57° x 120°
• Cable Length: 9.8' (3 m)
• Dimensions: 9.1" x 4.1" x 2.5" (23.1 x 10.4 x 6.4 cm)
• Weight: 2.60 lbs (1.18 kg)
• Operating Temperature Range: 0° C to 40° C
• Power Input: 10-32 V
• Fuse Rating: 4A
• Frequency: 417 kHz
• Transmit Power: 48 W
• Maximum Depth: 300'
• Garmin Marine Network Ports: 1 (standard connector)
• LiveV Down: Yes
• LiveV Forward: Yes
• Traditional Sonar Source: Yes
