Technical Specifications
SS NTWK FI-6010N ISCNER COL 25PPM CUSTOM SECURE

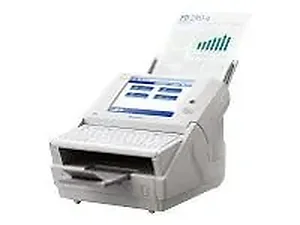

The iScanner fi-6010N is an evolutionary document capture solution that combines the intuitive, easy installation of a desktop scanner with the productivity of a network scanner. Network scanning, collaboration, emailing and faxing just got a lot easier. Simply load your documents, log into the network, select the destination, and press the scan button. The iScanner fi-6010N adds the ability to configure Job Menu buttons so that users can perform a pre-defined set of functions from a single button press. iScanner fi-6010N is suitable for deployment across the corporation, since the supplied Central Admin software allows multiple iScanner fi-6010Ns to be managed, monitored and configured by a single administer. The iScanner fi-6010N scans in color or monochrome at duplex speeds of up to 50 ipm. With up to 600 dpi optical resolution, image quality is among the best in its class.
Product Description Fujitsu fi 6010N - document scanner
Device Type Document scanner - desktop
Max Supported Document Size Legal (8.5 in x 14 in)
Dimensions (WxDxH) 12.4 in x 16.3 in x 11.1 in
Weight 28.7 lbs
Input Type Color
Grayscale / Color Depth (External) 8-bit (256 gray levels) / 24-bit (16.7 million colors)
Optical Resolution 600 dpi x 600 dpi
Max Document Scan Speed 25 ppm (mono) / 25 ppm (color)
Max Document Size 8.5 in x 34 in
Automatic Duplexing Yes
Supported Document Type Plain paper
Document Feeder Type Autoload
Feeder Capacity 50 sheets
Duty Cycle 2000 scans per day
Interface Type Ethernet 10/100
Networking Ethernet, Fast Ethernet
Power AC 120/230 V ( 50/60 Hz )
System Requirements Microsoft Windows 2000, Microsoft Windows Server 2003, Microsoft Windows Server 2008
Manufacturer Warranty 90 days warranty
General
Type Document scanner - desktop
Max Supported Document Size Legal (8.5 in x 14 in)
Width 12.4 in
Depth 16.3 in
Height 11.1 in
Weight 28.7 lbs
Scanner
Input Type Color
Grayscale Depth (External) 8-bit (256 gray levels)
Color Depth (External) 24-bit (16.7 million colors)
Optical Resolution 600 dpi x 600 dpi
Scan Mode Single/duplex pass
Automatic Duplexing Yes
Scan Element Type Dual CCD
Max Document Scan Speed B/W 25 ppm
Max Document Scan Speed Color 25 ppm
Duty Cycle 2000 scans per day
Scanner Speed DetailsΝ ppm - color - 200 dpi 25 ppm - greyscale - 200 dpi 50 ipm - duplex - color - 200 dpi 50 ipm - duplex - greyscale - 200 dpi
Scanner Features Built-in US 101 keyboard, 8.4" touch screen TFT display, Ultrasonic Double Feed Detection
Media Handling
Max Document Size 8.5 in x 34 in
Supported Document Type Plain paper
Document Feeder Type Autoload
Feeder Capacity 50 sheets
Networking
Data Link Protocol Ethernet, Fast Ethernet
Supported Protocols DHCP, FTP, HTTP, NTP, SMTP, TCP/IP, SMB
Features LDAP support
Expansion / Connectivity
Interfaces 1 x Ethernet 10Base-T/100Base-TX - RJ-45
Miscellaneous
Cables Included 1 x network cable
Compliant Standards RoHS
Power
Power Device Power supply - internal
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational ( Standby ) 88 Watt ( 10 Watt )
Software / System Requirements
Software Included Drivers & utilities
OS Required Microsoft Windows 2000, Microsoft Windows Server 2003, Microsoft Windows Server 2008
