Product Overview

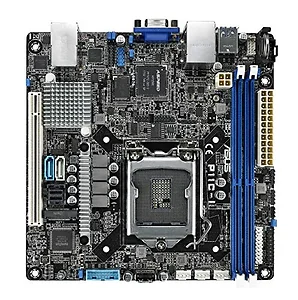

P11C-I is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering dual server-class Intel Ethernet and flexible expandability with M.2, six SATA 6G. The 6.7? x 6.7? Mini-ITX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density. The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.
Technical Specifications
Processor / System Bus
1 x Socket LGA1151
Intel Xeon processor E-2100 family
Intel Core i3 processors
Intel Pentium processors
Intel Celeron processors Core Logic
Intel C242 Chipset Memory
Total Slots : 2 (2 Channels)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
DDR4 2666/2400 UDIMM non ECC and with ECC
Memory Size :
16GB, 8GB, 4GB
Refer to support page for more information Expansion Slots
Total Slot : 1
Slot Location 7 : PCI-E x16 (Gen3 X16 Link)
Follow SSI Location Form Factor
Mini ITX (6.7" x 6.7", 170mm x 170mm) ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASUS Control Center Storage
SATA Controller :
Intel C242 Chipset
6 x SATA3 6Gb/s ports
1 x M.2 connector (2242)
Intel Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) Networking
2 x Intel I210AT + 1 x Mgmt LAN Graphic
Aspeed AST2500 with 32MB VRAM On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector)
1 x USB connector
3 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x M.2 Connector NGFF Type : 2242
1 x Onboard header for optional management card Back I/O Ports
2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
1 x VGA Port
2 x GbE LAN + 1 x Mgmt LAN Management Solution
ASUS Control Center
Optional ASMB9-iKVM for KVM-over-Internet Environment
Operation temperature: 10oC - 35oC
Non operation temperature: -40oC - 70oC
Non operation humidity: 20% - 90% ( Non condensing) Accessories
Gift Box (1-in-1)
2 x Support CD
1 x I/O shield
2 x SATA 6G cables
1 x Plate for LGA1151
1 x COM port cable
Bulk Pack (10-in-1)
2 x Support CD
1 x I/O shield
1 x Plate for LGA1151
10 x COM port cable Monitoring
CPU Temperature
Fan RPM Item Dimension (L"xW"xH")
14 x 12 x 4
Weight
5 lbs
Warranty Information
3 Year
