Egis Mobile Electric 2306 Egis M-Series 300A Battery Switch

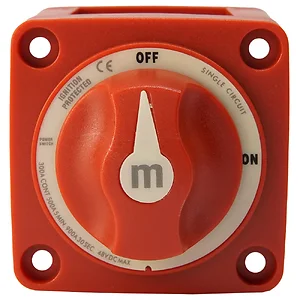

Egis M-Series 300A Battery Switch

This battery switch actuator is engineered to provide reliable circuit protection in demanding electrical installations. Its sealed design ensures resilience against dust and water intrusion, while its ignition protection feature makes it safe for use in enclosed spaces that may harbor explosive gases.

Constructed with high-quality materials, including stainless steel hardware and serrated flange lock nuts, this switch is designed to withstand high-vibration environments, preventing cable terminal loosening and ensuring a secure connection.

With flexible mounting options, it accommodates various installation types, making it versatile for different applications.

Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc
• Maximum Voltage (Selector / Dual Circuit): 32 Vdc
• Stud Size And Thread: 3/8”-16
• Terminal Stud Torque: 120 in-lbs (13.6 N-m)
• Ring Terminal Size Acceptance: 3/8” (M10)
• Mounting Holes: #10 Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Bulkhead / Panel - Mounting Hole Size: 2-5/8" / 2-5/16"
• Cable Size to Meet Rating: 4/0 AWG
