Technical Specifications
Type

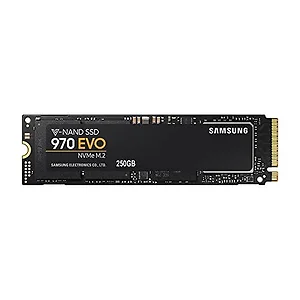

Series: 970 EVO
Usage Application: Client PCs
Interface: PCIe Gen 3.0 x4, NVMe 1.3 Storage
Capacity: 250GB Features
Sequential Read Speed: Up to 3,400 MB/s
Sequential Write Speed: Up to 1,500 MB/s
Random Read Speed:
Random Read (QD32): Up to 200,000 IOPS
Random Read (QD1): Up to 15,000 IOPS
Random Write Speed:
Random Write (QD32): Up to 350,000 IOPS
Random Write (QD1): Up to 50,000 IOPS
Controller: Samsung Phoenix Controller
NAND Flash: Samsung V-NAND 3-bit MLC
Cache Memory: Samsung 512MB Low Power DDR4 SDRAM
Trim Support: Yes
Security:
AES 256-bit Encryption (Class 0)
TCG/Opal V2.0
IEEE1667 (Encrypted drive)
S.M.A.R.T. Support: Yes
GC (Garbage Collection): Auto Garbage Collection Algorithm
Device Sleep Mode Support: Yes General
Power Consumption (W):
Actual power consumption may vary depending on system hardware and configuration
Average: 5.4W / Maximum: 9W (Burst mode) / Idle: 30mW (max)
Voltage: 3.3 V +/- 5 % Allowable voltage
Reliability (MTBF): 1.5 Million Hours (MTBF) Environmental Specs
Operating Temperature: 0 - 70 o Operating Temperature
Shock: 1,500 G and 0.5 ms (Half sine) Form Factor
Product: M.2 (2280) Software
Management SW: Magician Software for SSD management Item Dimension (L"xW"xH")
6 x 4 x 1
Weight
1 lb
Warranty Information
5 Years or 150 TBW
