Technical Specifications
Type

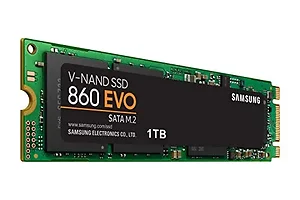

Series : SSD 860 EVO
Usage Application :Client PCs
Interface : SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s and SATA 1.5 Gb/s interface Storage
Capacity 1000 GB (1 GB equal to1 Billion byte by IDEMA) Key Features
Sequential Read Speed :Up to 550 MB/s Sequential Read
Sequential Write Speed :Up to 520 MB/s Sequential Write
Random Read Speed:
Random Read (4KB, QD32): -Up to 97,000 IOPS Random Read
-Random Read (4KB, QD1) : Up to 10,000 IOPS Random Read Random Write Speed
-Random Write (4KB, QD32) : Up to 88,000 IOPS Random Write
-Random Write (4KB, QD1) : Up to 42,000 IOPS Random Write Controller
Samsung MJX Controller NAND Type
Samsung V-NAND 3bit MLC Cache Memory
Samsung 1 GB Low Power DDR4 SDRAM Trim Support
Yes AES Encryption
AES 256-bit Encryption (Class 0)
TCG/Opal IEEE1667 (Encrypted drive) S.M.A.R.T. Support
Yes GC (Garbage Collection)
Auto Garbage Collection
Algorithm WWN Support
World Wide Name supported Device Sleep Mode Support
Yes Internal Storage
Yes General
Power Consumption (W) :
-Average : 3.0 W
-Maximum : 4.5 W (Burst mode)
-Actual power consumption may vary depending on system hardware and configuration
Reliability (MTBF) :1.5 Million Hours Reliability (MTBF) Environmental Specs
Operating Temperature : 0-70 oC Operating Temperature
Shock :1,500G and 0.5ms (Half sine) Form Factor
Product :M.2 SATA Software
Management SW :Magician Software for SSD management Item Dimension ( L inchxW inchxH inch)
6 x 4 x 1 Weight
1.00 lb
