SKU: BY9P58DJSU |  Mfg. Part: 309125  | UPC: 091887305685  |
 2 Reviews  |     Share

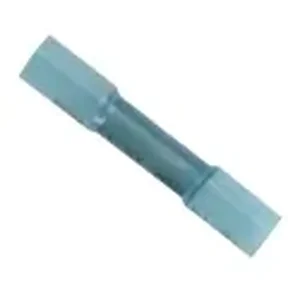

Ancor 309125 Marine Grade Heatshrink Butt Connectors - 25 Count

10 Available
Condition: New

$26.07  $35.19
 Free Shipping for this Item

Product Overview

Marine Grade Heatshrink Butt Connectors - 25 Count

Gauge Size: 16-14
Quantity: 25

Product Features:


Technical Specifications

  • Cross Linked polyolefin tubing offers superior strength compared to PVC and will not burn like PVC.
  • Heat activated adhesive lining creates an impervious seal against salt water, oil, acids, and sunlight while providing strain relief.
  • Nylon insulator is recommended by experts due to its Marine Grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
  • UL Listed and CSA Recognized for safety.
  • Highest shrink ratio - shrinks to 1/3 of its original size.
  • Effective shrinkage temperature at 257°F (125°C).
  • Operating temperature range from -40°C to 110°C.
  • Every connector includes built-in heat activated adhesive for a tight seal.
  • Forms a watertight seal providing robust vibration and strain relief.
  • Tinned for enhanced corrosion resistance.
  • Constructed with pure copper to ensure maximum current flow.
  • Brazed seam for additional strength.
  • Wire range accommodates sizes 16-14 (1-2 mm).

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • Ancor
  • 309125
  • 091887305685
  • New
  • 1 lbs
  • 4 X 1 X 4
  • Mar 11, 2026
  • Apr 15, 2021
  • UNITED STATES
Product Identifiers: Brand: Ancor • Part #: 309125 • UPC: 091887305685

Ancor 309125 Marine Grade Heatshrink Butt Connectors - 25 Count
