Technical Specifications
Eight external SATA+SAS ports
Two mini-SAS SFF-8088 x4 connectors
6Gb/s throughput per port
LSISAS2208 Dual Core ROC
o 800MHz PowerPC
MD2 Low profile (6.6" X 2.536")
x8 PCI Express 2.0 host interface
1GB DDRIII cache (1333MHz)
MegaRAID CacheVault flash cache protection (included)
Connect up to 240 SATA and/or SAS devices
RAID levels 0, 1, 5 and 6
RAID spans 10, 50 and 60
Solution Provided
Eight-port external SATA+SAS solution for performance-hungry external storage environments using up to 240 SAS, SATA and solid state drives (SSDs)
Physical Dimensions
MD2 Low profile (6.6 X 2.536)
Internal Connectors
Two Mini-SAS SFF8088 external connectors
Device Support
Up to 240 SAS and/or SATA hard drives and SSDs
Host Bus Type
x8 lane PCI Express 3.0 compliant
Data Transfer Rates
Up to 6Gb/s per port
I/O Processor/SAS Controller
LSISAS2208 Dual-Core RAID on Chip (ROC)
Cache Memory
1 GB 1333MHz DDRIII SDRAM
Cache Protection
MegaRAID CacheVault flash cache protection (included)
In the Box

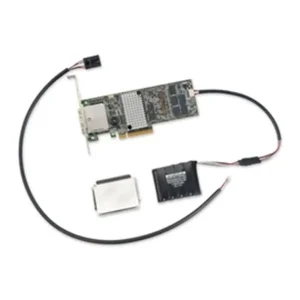

MR SAS 9286CV-8e (includes RAID controller, CacheVault flash module, CacheVault power module, CacheVault clip and remote cable), QIG, LP bracket
Item Dimension (L"xW"xH"):
8 x 10.2 x 4.5
Weight:
2.4lb
Warranty Information:
3 Years
