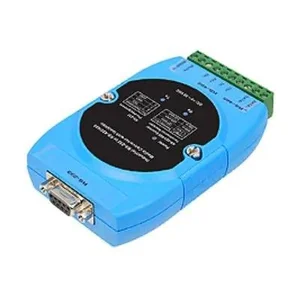

Siig ID-SC0N11-S1 Accessory ID-SC0N11-S1 Industrial Grade RS-232 to RS-422 485 Serial Converter with Isolation Protectio
Out of Stock
Condition: New
$122.91$165.93
Free Shipping for this Item
Product Overview
SIIG ID-SC0N11-S1Brand NewIncludes 5 Year WarrantyProduct # ID-SC0N11-S1SIIG's CyberX Industrial RS232 to RS-422/485 Isolated Serial Converter - Wide Temperature is designed to provide signal conversion between RS-232 to RS-422 or RS-485 with 3000 VDC isolation protection. It offers auto hardware direction control surge protection for RS-485 interface. In addition, it features power data flow LED indicators and supports a wide range of operating temperature to ensure reliable device connection in the demanding industrial environments.The CyberX Industrial RS232 to RS-422/485 Isolated Serial Converter - Wide Temperature is FCC and CE regulatory approved, RoHS-compliant, and backed by SIIG's limited 5-year warranty. ID-SC0N11-S1 Features: Packaged Quantity: 1 Adapter Type: Serial Connector on First End: 1 x 9-pin DB-9 Female RS-232 Serial Connector on Second End: 1 x 10-pin RS-422/485 Terminal Block Material: Acrylonitrile Butadiene Styrene (ABS) Green Compliant: Yes Green
Technical Specifications
1.Surge protection for RS-422 and RS-485
2.Provides 3000VDC isolation protection Input power: +930 VDC power input with the 10-pin terminal block
Power consumption: 2.2 Watts
Baud Rate: 300 - 115200 bps Flow Control: XON / XOFF (software)Auto Hardware Director Control for RS-485 Interface
Requirements Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 and 2008 (32-/64-bit) / Server 2008 R2 / 2000 Package Contents CyberX Industrial RS232 to RS-422/485 Isolated Serial Converter - Wide Temperature DIN-Rail/Wall-Mounting kit Users manual Item Dimension (L"xW"xH"): 1.97 x 7.87 x 6.3
