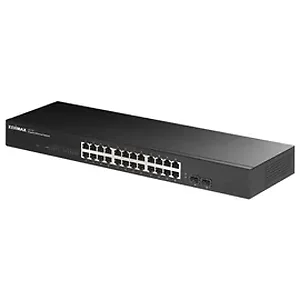

Edimax GS-1026 V2 Switch GS-1026 V2 24Port Gigabit with 2 SFP Slot Rackmount Switch Retail

•  Supports 24 10/100/1000Mbps Gigabit Ethernet ports and 2 10/100/1000Mbps SPF slots
•  Supports auto-MDI/MDIX crossover detection and auto-correction
•  Supports 10/100Mbps full/half duplex modes and 1000Mbps full duplex mode
•  Supports wire-speed package filtering and forwarding rates
•  Supports store-and-forward architecture with fragment and CRC error package filtering
•  Supports IEEE 802.3az Energy Efficient Ethernet
•  Support 8K MAC address table & 9KB jumbo frame
•  Designed with fan-less quite operation & 19-inch rack-mountable metal case
•  Plug and play, no installation required

Ports
24 RJ-45 10/100/1000Base-T ports
2 Combo Gigabit Ethernet/SFP ports

Transmission Method
Store and forward

Transmission Media
10BaseT Cat. 3, 4, 5 UTP/STP
100BaseTX Cat. 5 UTP/STP
1000BaseT Cat. 5e UTP/STP

Buttons
Reset button

LED Indicators
Per port: Link/Act
Per unit: Power

Power Input
100-240V AC, 50-60 Hz

Power Consumption
24W (Max)

Switching Capacity
48Gbps

MAC Address
8K

Buffer Memory
512KB

Jumbo Frames (Bytes)
9K

Filtering/Forwarding Rates
1000Mbps port -1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps

Temperature
Operating: 0 to 40^oC
Storage: -40 to 70^oC

Humidity (Non-condensing)
Operating: 10 to 90 percent
Storage: 5 to 90 percent

Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy efficient Ethernet

Certifications
FCC Class A, CE

Item Dimension (L inchxW inchxH inch)
20 x 10 x 3

Weight
5.60lb

Warranty Information
2 years
