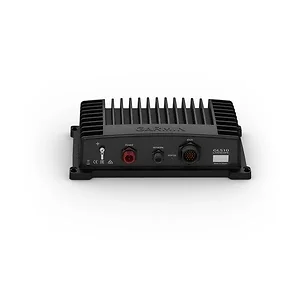

Garmin GLS10 LiveScope Sonar Module
The GLS 10 sonar module is a networkable, easy-to-install unit that allows you to view real-time scanning sonar images. Combining with the LVS32 transducer model, it provides clear visuals of underwater structures, bait, and fish around your boat. You can also share sonar images across multiple networked chartplotters seamlessly.
Note: Requires LVS32 transducer, not included.
Specifications
| Physical dimensions | 9.6" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm) |
| Weight | 4.3 lbs (2.0 kg) |
| Water rating | IPX7 |
| Garmin Marine Network™ ports | 1 (small connector) |
| Temperature range | Operating: -15 C to 70 C |
| Sonar Features & Specifications | |
| Frequencies supported | 530 - 1,100 kHz |
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Electrical | |
| Power input | 10-32 V |
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
Garmin 010-12954-00 GLS10 LiveScope Sonar Module
