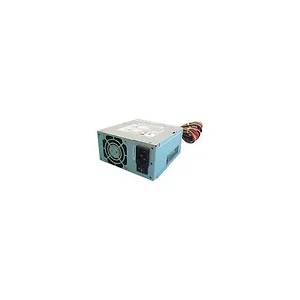

Sparkle Power FSP300-60GNV-5K Sparkle FSP300-60GNV-5K 300W SFX12V Switching Power Supply w/ Active PFC

Specifications

• Mfr Part Number: FSP300GNV5K-B204(FSP300-60GNV-5K)
• Features:
  • Complied with SFX and SFX12V standard
  • Active Power Factor Correction (PFC) meet EN61000-3-2
  • High efficiency and reliability
  • Remote On/Off function
  • Internal 12V DC fan included
  • Noise Killer (Thermal fan speed control function)
  • Low noise and ripple
  • Complies with FCC part 15 subpart J clsdd B 115Vac operation, and CISPR 22 class B at 230Vac operation
  • Output over voltage, short circuit, and over current protection
  • 100% Hi-pot, ATE, and burn-in tested
  • Re-settable power shut down
  • Approved by CUL/UL60950-1, TUV EN60950-1, CB Report IEC 60950-1, CE
• Input:
  • Input Range: 90 ~ 265Vac
  • Frequency: 47 ~ 63Hz
  • Input Current: 4A @ 115Vac, 2A (RMS) @ 230Vac
  • Inrush Current: No damage, typical 80A Max mat cold start
• Output:
  • Total Watts: 300W
  • Output Voltage: +3.3V @ 18A, +5V @ 18A, +12V1 @ 8A, +12V2 @ 16A, -12V @ 0.5A, +5VSB @ 2A
  • +3.3V and +5V Total Output not Exceed 125W
• Dielectric Withstand: Input to frame ground 1800 VAC for 1 second
• Efficiency: 70% at light load and 75% at typical load and full load
• Rise Time: Less than 20ms (5VSB less than 25ms)
• Hold-up Time: 17ms minimum at nominal input voltage
• Power Good Signal: Power on delay time 100 ~ 500ms, Off delay 1ms minimum (TTL and CMOS compatible)
• Leakage Current: Not exceed 3.5 mA
• MTBF: 100,000 hours on maximum load at +25°C
• Dimensions (WxLxH): 5.0 x 5.1 x 2.5 inch / 125.0 x 130.0 x 63.5 mm
• RoHS Compliant
