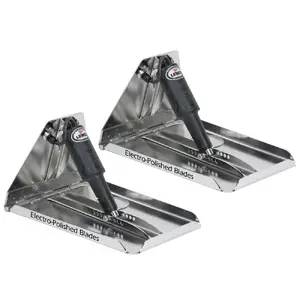

Lenco 15045-101 17" x 12" Extreme Duty Trim Tab Kit - No Switch

17" x 12" Extreme Duty Trim Tab Kit - No Switch

The Lenco Electric Extreme Duty Polished Blade Trim Tab Kit offers fast response actuators for precise control and performance. Fully submersible, it features Plug & Play Deutsch connections with blades made of Electro-Polished 10 Gauge 304 Stainless Steel. The design includes 1" turned-up edges, an 85-degree inside taper, and a 3/8" diameter hinge pin. This kit comes factory assembled with a full transom back plate and includes adjustable C-channel mounting brackets along with 3.75" sacrificial anodes.

Kit Contents:

• Two stainless steel trim tab planes
• Two #15056-001XD extreme duty actuators with 6" leads & Deutsch plugs
• Complete assembly with full transom back plate and other essential components

Customer Supply Requirements:

• Boat mounting hardware is not included
• Actuator extension harnesses required (2 for single actuator or 4 for dual) available in various lengths from the Lenco Accessories section

Specifications:

• Suggested Boat Length: 20' to 40'
• Length of Tab: 17"
• Width of Tab: 12"
• Minimum Transom Height: 10.5"
• Material: 10 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Suitable for Any Boat
• Switch Required: 10222-211D, 15069-001 or 15070-001
• Actuators: 12-volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
