Product Overview

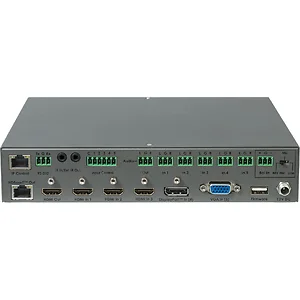

The EXT-4K600A-MF-51-HBTLS is a 5x1 Presentation Switcher with three 4K 600 MHz HDMI, one DisplayPort 1.2, one VGA, five independently assignable stereo analog audio, & one balanced/unbalanced microphone/line input. The latter features switchable 48V Phantom Power and Ducking. The five video inputs, along with their embedded or assigned audio, can be switched automatically or manually. Control options include the front panel, hand-held IR remote with On-Screen-Display, electrical IR, RS-232, Telnet/UDP, web server interface, & contact closure. The split HDMI and HDBaseT outputs feature a scaler, configurable to 3840 x 2160, 30 Hz, 4:4:4. They feed a local and a remote display simultaneously, adding flexibility in larger presentation environments. The Switcher and its recommended Receiver (the EXT-UHDA-HBTL-RX, sold separately) use Gefen's implementation of the HDBaseT? technology to extend the HDMI output of the Switcher up to 230 feet/70 meters at 1080p Full HD and up to 130 feet/40 meters at 4K, using one CAT-5e or better cable. The HDMI and DisplayPort? inputs support resolutions up to 4K DCI (4096 x 2160) 60 Hz 4:4:4, with HDCP 2.2 and 1.4. The HDMI input & output, and the HDBaseT output support 2 channels of LPCM digital audio. The VGA input supports resolutions up to WUXGA (1920 x 1200) and 1080p Full HD. When used with third-party adaptors, the VGA input also supports Component (YPbPr) and Composite video. The Switcher features an analog L/R audio de-embedder.
