Is the E5800FSQS6 in stock?

The E5800FSQS6 is currently out of stock. Please check back or request a quote for availability.

Add price you are willing to pay for the product: (E5800FSQS6)

SKU: X54ZA1CV8B | Mfg. Part: E5800FSQS6 | UPC: 704118112494 |

1 Reviews | Share Make an offer

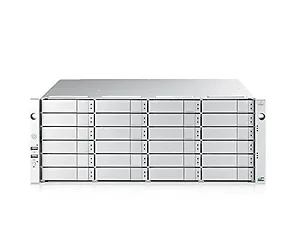

Promise Technology E5800FSQS6 Promise E5800FSQS6 4U 24Bay 16G FC RAID System

Name: E5800FSQS6 Promise Technology Promise E5800FSQS6 4U 24Bay 16G FC RAID System
Brand: Promise Technology
SKU: X54ZA1CV8B
Price: 16085.85 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Out of Stock
Condition: New

$16,085.85 ~~$21,715.90~~

Free Shipping for this Item

Product Overview

The Promise E5800FSQS6 is a high-performance 4U 24-bay storage solution designed for demanding enterprise environments. With advanced RAID capabilities, this system ensures data integrity and availability while providing immense storage capacity through its 24 x 6TB 7200 RPM 12G SAS HDD configuration. Perfect for data-intensive applications, the E5800FSQS6 is equipped with numerous features that promote efficiency, performance, and ease of management.

Technical Specifications

Form Factor: 4U/24 Bay
Total Raw Capacity: 144TB
Hot Spares: Global or dedicated with revertible option
Max LUNs per Subsystem: 1024
Max LUNs per Array: 32
Advanced Storage Features:
- Advanced Cache Mirroring over PCIe Gen3
- Simple, drag-and-drop LUN Masking and Mapping
- Asymmetric LUN Unit Access (ALUA)
- Volume Copy
- PerfectFlash - Non-Disruptive Software Update
- I/O performance power monitoring tools
- USB Service Log
- LDAP Support for central user management
Background Activities:
- Media Patrol
- Background Synchronization
- Foreground Initialization
- Rebuild
- Redundancy Check
- Disk SMART Polling
- Online Capacity Expansion (OCE)
- RAID Level Migration (RLM)
- UPS Monitoring
- Feature-rich task scheduler for background activities
PerfectRAID Features:
- Predictive Data Migration (PDM)
- Intelligent Bad Sector Remapping
- SMART Error Handling
- NVRAM Error Logging
- Disk Slot Power Control
- Read/Write Check Table
- Write Hole Table
GreenRAID Features:
- Four levels of advanced power management disk drive (MAID) support
- Efficient 80Plus Certified power supplies
Management Interfaces:
- Web Based management using WebPAM PROe (Ethernet)
- Command Line Interface (CLI) or Command Line Utility (Serial Port or Ethernet via Telnet, SSH)
- Third Party Management Support via SNMP, CIM
Supported Operating Systems: Windows Server 2008, 2012, HyperV, OS X 10.x, RHEL 6.5, 6.6, SLES 11, VMware ESX v6.x
Voltage: 100--240 Vac Auto--Ranging
Current (Maximum): 9A at 100 Vac, 4A at 240 Vac
Power Conversion Efficiency: >80% at 110V (>20% load), >80% at 240V (>20% load)
Temperature Range: Operational: 5°C to 40°C, Non-Operational: -40°C to 60°C
Humidity: Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels: 55 dB (Typical), 65 dB (Maximum)
Shock: Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration
Vibration: Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz
Safety and Emission Certification: EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC; Safety: IEEE CB, UL/cUL and TUV
