B117 50/200kHz 600W Mix & Match 0° Deadrise

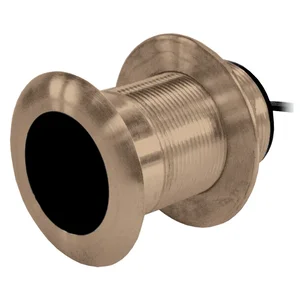

Airmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside the hull.
Features:
- Depth only or depth and fast-response water-temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Right-angle cable exit saves space and protects the transducer if stepped on
- The included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Low-profile, bronze housing has minimal drag
- Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials
Specifications:
- Power Rating: 600 W
- Max Deadrise Angle: 12°
- Housing: Bronze
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 8 m (26')
- Hole Size: 51 mm (2")
- Acoustic Window: Urethane
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 45°/12°
- Max Deadrise: Best performance through 7°. Accommodates up to 12°
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mounting Style: Low Profile Thru-Hull
- Retractable housing: No
- Single or Dual Frequency: Conventional Dual Frequency
- Weight: 0.9 kg (2 lbs.)
