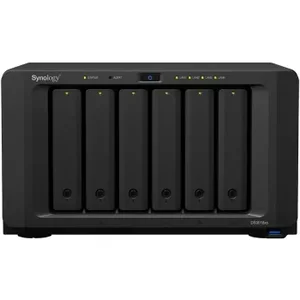

Synology DS3018XS 6 Bay NAS Diskstation Intel Pentium D1508 2.2GHz 8GB 0GB HDD NAS Server DS3018XS
Out of Stock
Condition: New
$1,384.67$1,869.30
Free Shipping for this Item
Product Overview
General InformationHigh-performance NAS server with scaling flexibility Powered by a dual-core processor with AES-NI hardware encryption engine, Synology DiskStation DS3018xs is a brand new 6-bay NAS that comes with a PCIe slot and can be installed with a 10GbE network interface card or a dual M.2 SSD adapter card. SSD cache support enhances network speeds and boosts performance, allowing DS3018xs to meet data-intensive requirements. Supercharge your storage with speedy performance Equipped with dual-channel memory and a PCIe slot, DS3018xs supports installing the dual M.2 SSD adapter card, M2D17, or the 10GbE NIC, for high-IOPS system cache and ultra-fast data transmission respectively. Next-generation file system for better data protection The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools. Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots File or folder level data restoration makes data recovery fast and flexible Automatic file self-healing detects and recovers corrupted files without user intervention Fully certified storage virtualization solutions Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Digital asset protectionPowered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes. Security Advisor Analyzes system settings, password strength, network preferences, and removes any possible malware. AppArmor A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources. AES 256-bit encryption Encrypt shared folders and network data transmission to keep data from unauthorized access. 2-step verification Prevent others from logging in to your DSM by generating a one-time password (OTP) on your mobile device. Trust Level Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files. 5 year warranty Synology's 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises' return on investment.StorageNumber of Hard Drives Supported: 6Number of Hard Drives Installed: NoTotal Hard Drive Capacity Supported: 60 TBNumber of Solid State Drive Supported: 6Number of Solid State Drive Installed: NoProcessor & ChipsetProcessor Manufacturer: IntelProcessor Type: PentiumProcessor Model: D1508Processor Core: Dual-core (2 Core)Processor Speed: 2.20 GHzMemoryStandard Memory: 8 GBMemory Technology: DDR4 SDRAMNetwork & CommunicationEthernet Technology: Gigabit Ethernet
Technical Specifications
Hardware Specifications CPU CPU Model:Intel Pentium D1508 CPU Architecture:64-bit CPU Frequency:Dual Core 2.2 GHz 2.2 (base) / 2.6 (turbo) GHz Hardware Encryption Engine (AES-NI):Yes Memory System Memory:8 GB DDR4 ECC SO-DIMM Memory Module Pre-installed:8GB (1 x 8GB) Total Memory Slots:2 Memory Expandable up to:32 GB (16 GB x 2) Storage Drive Bays:6 Maximum Drive Bays with Expansion Unit:30 Compatible Drive Type:3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD Maximum Internal Raw Capacity:72 TB (12 TB drive x 6) (Capacity may vary by RAID types) Maximum Raw Capacity with Expansion Units:360 TB (12 TB drive x 30) (Capacity may vary by RAID types) Maximum Single Volume Size:200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only) 108 TB Hot Swappable Drive:Yes Notes:"Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. The maximum single volume size is not directly related to the maximum raw capacity. Expansion of the internal volume is only supported if the combined single volume size does not exceed the maximum limit of 108TB or 200TB if upgraded to 32GB RAM or more. External Ports RJ-45 1GbE LAN Port:4 (with Link Aggregation / Failover support) USB 3.0 Port:3 Expansion Port:2 PCIe PCIe Expansion:1 x Gen3 x8 slot (x8 link) Add-in-card support:M2D17 - Dual M.2 SSD adapter card for SSD cache PCIe Network Interface Card Notes:DS3018xs with M2D17 can only support M.2 SATA SSD. M.2 NVMe/AHCI PCIe SSD is not supported. File System Internal Drives:Btrfs EXT4 External Drives:Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT Notes:exFAT Access is purchased separately in Package Center. Others System Fan:92 mm x 92 mm x 2 pcs Fan Speed Mode:Full-Speed Mode Cool Mode Quiet Mode Easy Replacement System Fan:Yes Brightness adjustable front LED indicators:Yes Power Recovery:Yes Noise Level:25.5 dB(A) Scheduled Power On/Off:Yes Wake on LAN/WAN:Yes Power Supply Unit / Adapter:250W AC Input Power Voltage:100V to 240V AC Power Frequency:50/60 Hz, Single Phase Power Consumption:126.89 W (Access) 56.92 W (HDD Hibernation) British Thermal Unit:433.27 BTU/hr (Access) 194.35 BTU/hr (HDD Hibernation) Environment Temperature Operating Temperature:5oC to 40oC (40oF to 104oF) Storage Temperature:-20oC to 60oC (-5oF to 140oF) Relative Humidity:5% to 95% RH Certification:FCC Class B CE Class B BSMI Class B Warranty:5 Years Notes:Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear Background noise: 16.49-17.51 dB(A) Temperature: 24.25-25.75C Humidity: 58.2-61.8% DSM Specifications Storage Management Maximum Internal Volume Number:1024 Maximum iSCSI Target Number:64 Maximum iSCSI LUN:512 iSCSI LUN Clone/Snapshot, Windows ODX:Yes RAID Group:Yes Supported RAID Type:RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID Migration:Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6 Volume Expansion with Larger HDDs:RAID F1 RAID 1 RAID 5 RAID 6 Volume Expansion by Adding a HDD:RAID F1 RAID 5 RAID 6 JBOD Global Hot Spare Supported RAID Type:RAID F1 RAID 1 RAID 5 RAID 6 RAID 10 SSD Support SSD Read/Write Cache (White Paper):Yes SSD TRIM:Yes File Sharing Capacity Maximum Local User Accounts:16000 Maximum Local Groups:512 Maximum Shared Folder:512 Maximum Shared Folder Sync Tasks:16 Maximum Concurrent CIFS/AFP/FTP Connections:2000 Windows Access Control List (ACL) Integration:Yes NFS Kerberos Authentication:Yes High Availability Manager:Yes Log Center:Yes Syslog Events per Second:1500 Virtualization VMware vSphere 6 with VAAI:Yes Windows Server 2012:Yes Windows Server 2012 R2:Yes Citrix Ready:Yes OpenStack:Yes Add-on Packages Antivirus by McAfee (Trial):Yes Central Management System:Yes Chat:Yes Maximum Users:2000 Notes:The number of concurrent HTTP connections for Chat was configured to the maximum. CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed. Cloud Station Server:Yes Maximum Number of Concurrently Connected Devices:2000 Maximum Number of Concurrently Connected Devices (with RAM expansion):8000 Maximum Number of Synced Files (btrfs):1,000,000 / single file reaction time 640 ms Maximum Number of Synced Files (ext4):1,000,000 / single file reaction time 387 ms Notes:The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. For more information on file processing capability, please refer to the reaction time for file processing. File reaction time refers to the preparation time required for other devices to start downloading a 1KByte file from a Synology NAS after the file has been added to the NAS. RAM expansion was not used during testing. Non-encrypted shared folders were used during the aforementioned testing. Document Viewer:Yes Download Station:Yes Maximum Concurrent Download Tasks:80 exFAT Access (optional):Yes MailPlus / MailPlus Server:Yes Free Email Accounts:5 (Licenses required for additional accounts) Recommended MailPlus Client Number:Up to 200 (Btrfs) / 200 (EXT4) Maximum Server Performance:1,616,000 (Btrfs) / 1,782,000 (EXT4) emails per day, approx. 49.31 GB (Btrfs) / 54.38 GB (EXT4) Notes:The CPU and RAM usages were both under 80% when testing recommended client numbers. For tested models with expandable memory, the maximum amount of RAM was installed. Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs Environment Packaging Environment:RoHS Compliant Packaging Content:Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1 Optional Accessories:Surveillance Device License Pack 16GB DDR4 ECC SO-DIMM Expansion Unit: DX1215 X 2 VS360HD VS960HD Synology Ethernet Adapter E10G15-F1 Synology Ethernet Adapter E10G17-F2 Synology M2D17 M.2 SSD adapter card Item Dimension (L inchxW inchxH inch) 16 x 13 x12 Weight 18lb Warranty Information 5 Years
