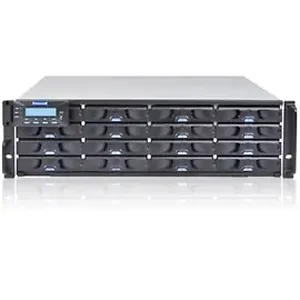

Infortrend DS3016GTE000F EonStor DS3016GTE 3U 16-Bay Storage System

Name: DS3016GTE000F Infortrend EonStor DS3016GTE 3U 16-Bay Storage System
Brand: Infortrend
SKU: YU3SCTUGL0
Price: 9460.00 USD
Availability: BackOrder
Rating: 5 (1 reviews)

Special Order
Ships in 1-2 weeks
Condition: New

$9,460.00 ~~$12,771.00~~

Free Shipping for this Item

Product Overview

The Infortrend EonStor DS3016GTE is a high-performance storage solution designed for enterprise environments. With support for advanced RAID functionalities, multiple connectivity options, and robust data management features, this 3U storage system offers exceptional flexibility and reliability for data-intensive applications.

Technical Specifications

Host Ports:
- Four 1Gb/s iSCSI ports (2 per controller)
- One 6Gb/s SAS port
Controller:
- Single controller subsystem with 16GB Cache Memory (2x8GB)
Drive Connectivity:
- 6Gb/s SAS connectivity
- S.M.A.R.T. support with automatic bad-sector reassignment
- Dedicated bandwidth to each connected drive
Supported Drives:
- 2.5" SAS SSDs - 200GB, 400GB, 800GB
- 2.5" SATA SSDs - 100GB, 200GB, 400GB, 800GB
- 2.5" 10,000RPM SAS - 300GB, 600GB, 900GB, 1.2TB
- 3.5" 15,000 RPM SAS - 300GB, 450GB, 600GB
- 3.5" 7,200 RPM (Nearline) SAS - 1TB, 2TB, 3TB, 4TB, 6TB
- 3.5" 7,200 RPM SATA drives - 1TB, 2TB, 3TB, 4TB, 5TB (MUX board required for SATA)
Number of Drives:
- Per system: 16
- Via JBOD: 316
Form Factor: 3U
RAID Functionality:
- Global, dedicated, or enclosure hot-spare
- RAID levels supported: 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
- Online expansion, RAID migration, configurable stripe size and write policy
Data Services:
- Thin provisioning, self-encrypting drives (SED)
- Automated storage tiering (optional), local replication
- Snapshot, volume copy/mirror, remote replication (optional)
Green Design:
- 80 PLUS-certified power supplies for over 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability:
- Redundant, hot-swappable hardware modules
- CacheSafe technology and multi-pathing support
Notification: Varied event notification methods including email, LAN broadcast, and SMS
Management:
- Web-based SANWatch management software
- Access via RS232 serial port, Telnet, and SSH
- Platform-independent firmware management GUI
OS Support:
- Windows Server 2003, 2008, 2008 R2 (including Hyper-V)
- RedHat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris
- Mac OS X, VMware, Citrix, IBM AIX, HP-UX
Power:
- Two 530W power supplies
- AC voltage: 100-240VAC with auto-switching PFC
- Frequency: 47-63 Hz
Item Dimensions: 23.5" x 30.67" x 22.2"
Weight: 96.39 lb
Warranty Information: 3 years
