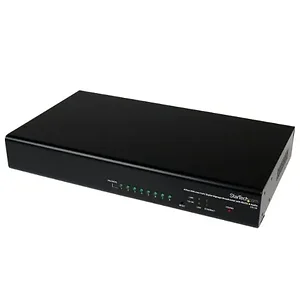

Startech DS128 8-Port VGA over Cat5 Digital Signage Broadcaster

Special Order
Ships in 1-2 weeks
Condition: New

$312.88  $422.39
 Free Shipping for this Item

Product Overview

The StarTech 8-Port VGA over Cat5 Digital Signage Broadcaster allows you to extend your VGA signals over long distances up to 300 meters, making it ideal for digital signage applications. This unit supports resolutions up to 1600x1200 and includes multiple connectivity options. With robust features such as RS232 support and audio capabilities, it is perfect for any professional AV setup.

Technical Specifications

  • Maximum Resolution: 1600x1200 at 100m / 330ft, 1280 x 1024 at 300m / 950ft
  • Color: Black
  • Connector Types: 1 - High Density 15 pin Female, 2 - Phono 3.5 mm Female, 10 - RJ45 Female, 1 - DB9 Male, 1 - High Density DB15 Male, 1 - DB9 Female
  • Enclosure Type: Steel
  • LED Indicators: 1 - Power (Red), 2 - Link (Green) - LAN link status, 2 - 10/100 (Red) - LAN speed, 8 - Receiver (Green) - Receiver link status
  • Number of Ports: 8
  • Operating Temperature: 0 deg C to 40 deg C (32 deg F to 104 deg F)
  • Humidity: 0-90% RH, non-condensing
  • RS-232 Serial Support: Yes
  • Audio Support: Yes, Stereo CD Quality sound
  • DDC/EDID Emulation: Yes, emulation for port 1 monitor
  • Rack-Mountable: Yes
  • Wide Screen Supported: Yes
  • Plug Type: M
  • Product Height: 1.57 in (40 mm)
  • Product Length: 11.81 in (300 mm)
  • Product Width: 6.3 in (160 mm)
  • Product Weight: 3.09 lb (1.4 kg)
  • Shipping (Package) Weight: 5.9 lb (2.67 kg)
  • Packing Dimension (L x W x H in inches): 13.39 x 9.84 x 6.89 inch

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • STARTECH
  • DS128
  • 065030837477
  • New
  • 5.89 lbs
  • 6 X 2 X 12
  • Feb 19, 2026
  • May 26, 2010
Product Identifiers: Brand: Startech • Part #: DS128 • UPC: 065030837477
