Received! Our sales team will contact you soon.

SKU: XFJ0G9FN1P |  Mfg. Part: DN7164E12  |
 1 Reviews  |     Share Make an offer

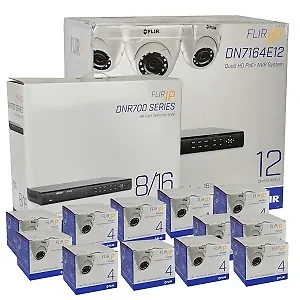

Flir Systems DN7164E12 Flir Lorex DN7164E12 4K Ultra HD PoE+ 16-Channel 4TB NVR SystemSecurity System w/12 4MP IP Camera

Out of Stock
Condition: New

$2,246.13
 Free Shipping for this Item

Product Overview

  • Notes:
  • Model: DN7164E12
  • UPC: 8 41430 01886 5
  • Product Requirements:
  • Power outlet
  • HDMI or VGA display
  • RJ-45 Ethernet LAN port

Technical Specifications

  • Flir DN7164E12 4K Ultra HD PoE+ 4TB NVR System SecuritySystem
  • General Features:
  • 4K Ultra HD recorder
  • 12 x 4MP weatherproof eyeball domes for HD recording
  • True WDR capability up to 100dB ensures excellent imagequality
  • H.265 delivers improved compression efficiency for significanthard drive space savings
  • Installation is made simple with the NVR’s 16 x integrated PoE+ports
  • 320Mbps network bit rate (48~8192 kbps/ch)
  • Supports high definition recording with cameras up to 8MP(4K)
  • Pentaplex operation: simultaneous viewing, recording, playback,backup and remote monitoring
  • 130 Watts total PoE (max 25W per channel)
  • Auto-discovery of FLIR IP cameras with no programming
  • Multisite viewing with FLIR Cloud CMS for PC and Mac
  • NVR Features:
  • Operating system: Linux (embedded)
  • Pentaplex: simultaneous view, record, playback, backup andremote monitoring
  • Number of channels: 16 Channels
  • Live display: 1,4,8,9,16
  • Live display speed: 480fps NTSC, 400fps PAL
  • OSD: On/Off
  • System navigation: USB mouse, IR remote controller, front panelbuttons
  • Motion area setting: fixed grid (22×18)
  • Sensitivity levels :100
  • Firmware upgrade: automatic over the Internet and via USBdevice and network
  • User Authority: by user group
  • Time synchronization: auto time sync by NTP server
  • Video compression: H.264 / H.265
  • Audio compression: G.711
  • Recording resolution: 720p (1280×720), 1080p (1920×1080) ~4K-8MP (3840×2160)
  • Record rate 16ch: 480fps @ 720p/1080p/3MP/4MP/8MP
  • Recording quality control: 6 levels
  • Recording schedule: by hour, by day, by recording mode, bymotion, by alarm, by channel
  • Pre recording max: 4 seconds
  • Post recording max: 5 minutes
  • Reliability: watch-dog, auto-recovery after power failure
  • Covert video
  • Storage: up to 2 HDDs (SATA)
  • Maximum capacity: up to 2x 8TB
  • Backup media: USB flash drive and HD
  • NVR Connectivity:
  • Cloud connection: FLIR Cloud
  • Supported operating systems: Windows, Mac OSX
  • Remote software: client software (PC/Mac)
  • Email notification: text with snapshot
  • Instant smart phone and tablet support: Android, iPad,iPhone
  • DDNS: free FLIR DDNS
  • System configuration: full setup configuration overnetwork
  • Ports: programmable by user
  • Network protocol: HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP,SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
  • Network bit rate: 320Mbps total, 48~8192kbps per camera
  • Network interface: 10/100/1000-Base-TX, RJ-45
  • Camera Features:
  • Image sensor: 4MP, 1/3”
  • Effective pixels: 2688(H) × 1520(V)
  • Imager type: CMOS
  • Image readout: progressive scan
  • Day/night: auto (ICR) / Color / B/W
  • Day/night delay adjustment
  • Mechanical IR filter
  • Min. Illumination: 0.38 lux @ F2.0 (Color), F2.0 lux @ F1.8(B/W)
  • S/N ratio: 46dB (AGC OFF)
  • Horizontal field of view: 90°
  • IR Illumination: 82ft / 25m, 850nm
  • IR On/Off control
  • Video output: RJ-45
  • Electronic shutter range: 1/3 (1/4) ~ 1/100,000 seconds
  • Lens type: fixed
  • Lens mount: board type
  • Iris type: AES
  • Focal length: 2.8mm
  • F-number: F2.0
  • Focus: fixed
  • Video:
  • Video compression: H.265 / H.264 / MJPEG
  • Video streams :H.265 / H.264 / MJPEG Triple Stream
  • Resolution selection (mainstream): 4MP(2688 × 1520) /3.7MP(2560x1440)/3MP(2304×1296) / 1080P(1920×1080)/SXGA (1280x1024)/ 1.3MP(1280x960)/ 720P(1280×720)
  • Aspect ratio: 16 : 9 (excl. 1.3MP @ 4:3)
  • Frame rates (MAX): 4MP @ up to 20fps / 3MP/1080p/720p @25/30fps
  • Bit rate control: CBR / VBR (with cap)
  • Bit rate selection (mainstream): H.264 – 2,304Kbps ~10,240Kbps, H.265 – 768Kbps ~ 7,680Kbps / Custom
  • Quality setting range (default): 1-6 (6)
  • Region of Interest
  • Wide dynamic range: true WDR, User selectable
  • Dynamic range: up to 100dB
  • Backlight compensation: BLC / HLC
  • White balance: auto/manual
  • Gain control: auto /manual
  • Noise reduction: 3D-DNR
  • Smart IR: yes, user adjustable
  • Digital zoom: up to 10x
  • Tamper protection
  • Video mirroring/rotation: horizontal Mirror / 90° / 180° / 270°/ hallway mode
  • Video overlay: Time/Date/Channel/Title/Custom
  • Window blanking (Privacy): up to 4 Areas
  • Menu languages: English
  • Network:
  • Protocols: IPv4/IPv6, HTTP, TCP/IP, ARP, UDP, UPnP, RTSP, RTP,SMTP, NTP, DHCP, DNS, DDNS, FTP, QoS
  • ONVIF conformance: Profile S
  • RTSP video: standard RFC2326, support quicktime/VLC Player.User security authentication (enabled/disabled)
  • Unicast users: up to 20
  • Multicast users: up to 20
  • Power Specifications:
  • Input: 100-240V ~ 50/60Hz, 3.5A
  • Output: 12V---5A, 52V---5A
  • Unit Dimensions:
  • NVR: 2.1 x 14.7 x 12.9-inches (H x W x D)
  • Camera: 2.9 x 3.8 x 3.8-inches (H x W x D)

Product Details

  • Manufacturer:
  • Model Number:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Flir Systems
  • DN7164E12
  • New
  • 27 lbs
  • 18 X 5 X 5
  • Feb 19, 2026
  • Jun 03, 2019
Product Identifiers: Brand: Flir Systems • Part #: DN7164E12 • Category: Infrared & Thermal Imaging

Flir Systems DN7164E12 Flir Lorex DN7164E12 4K Ultra HD PoE+ 16-Channel 4TB NVR SystemSecurity System w/12 4MP IP Camera

Reviews for Flir Systems DN7164E12

$2,246.13
