SKU: IVVFCPHWXF |  Mfg. Part: CW33360  | UPC: 873804001586  |
 1 Reviews  |     Share

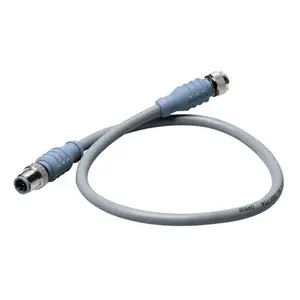

Maretron CW33360 Micro Double-Ended Cordset - 8M

9 Available
Condition: New

$64.81  $87.49
 Free Shipping for this Item

Product Overview

Mechanical
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59?Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved



















    • Product Details

    • Manufacturer:
    • Model Number:
    • ASIN:
    • UPC:
    • Condition:
    • Weight:
    • Dimensions:
    • Updated:
    • Added:
    • Country of Origin:
    • Maretron
    • CW33360
    • B001CI5HMU
    • 873804001586
    • New
    • 1.1 lbs
    • 8 X 1 X 7
    • Today - Apr 07, 2026
    • Apr 20, 2021
    • MEXICO
    Product Identifiers: Brand: Maretron • Part #: CW33360 • UPC: 873804001586 • ASIN: B001CI5HMU • Category: Consumer Electronics

    Maretron CW33360 Micro Double-Ended Cordset - 8M

    Reviews for Maretron CW33360

    $64.81
