Product Overview

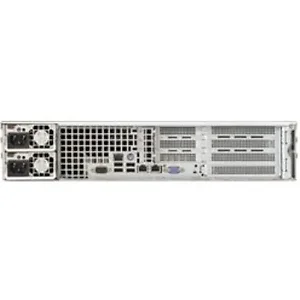

Supermicro SC213 A-R740WB - Rack-mountable - 2U - SATA/SAS - hot-swap - power supply - redundant 740 Watt - black - for SUPERMICRO X9DRW-3F, X9DRW-IF, SuperServer 2027R-WRF
Technical Specifications
Form Factor
2U chassis supports SMC Proprietary WIO motherboards
max. motherboard size - 12" x 13", 13" x 13.68"
Processor Support
Supports dual, single Intel / AMD processors
Available Color
Black Expansion Slots
4x Full-height, Full-length and 3x Low-profile expansion slots
Drive Bays
Hot-swap
16x 2.5" SAS / SATA Hot-swap drive bays
SAS or enterprise SATA HDD only recommended
Peripheral Bay
1x 5.25" peripheral Drive Bay
1x Slim Optical Drive Bay
1x USB/COM Port Bay Backplane
2U Direct Attached Backplane, features:
3Gb/6Gb support
SES-2 Enclosure Management Support
SAS/SATA support
Four SFF 8087 connectors Peripheral Drives
DVD-ROM
1x Slim DVD-ROM Drive, 2x USB + 1x COM port (option)
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED System Cooling
Fans
3x 80mm 7,000 RPM 4-pin PWM fans
System Monitoring
Chassis intrusion switch Power Supply with Power Distributor
740W (1+1) Redundant high-efficiency power supply with PMBus
AC Input
100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output
4 Amp at +5V standby
61.7 Amp at +12V
With Power Distributor
+5V: 30 Amp
+3.3V: 24 Amp
-12V: 0.6 Amp
Certification
80 PLUS Platinum Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed
Canada - CUL listed
Germany - TUV Certified
EN 60950/IEC 60950-Compliant
CB Report
CCC Certification Item Dimension (L"xW"xH"):
26.5 x 10.5 x 38
Weight:
63.7 lb
Warranty Information:
1 Year
