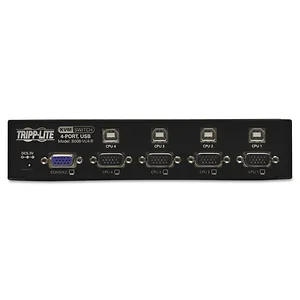

Tripp Lite CM1593 4-Port Desktop USB KVM Switch - 4 Computer(s) - 2048 x 1536 - 6 x USB - Desktop

Tripp Lite's 4-port Desktop USB KVM Switch is the optimal solution for controlling up to 4 USB computers from one VGA monitor and USB keyboard/mouse. Manually switch between connected computers using pushbuttons or hotkey controls; or, monitor connected computers automatically via Auto Scan Mode. The B006-VU4-R is operating system independent, and works with all computers that have an available VGA and USB port. It supports video resolutions up to 2048 x 1536, and features a compact design that does not require software or complicated set-up procedures. Constructed of heavy-duty steel housing. Order P758 Cables separately.

• UPC Code: 037332152947
• Console: No
• Max CPU: 4
• Technology: VGA/SVGA
• Max Supported Video Resolution: 2048 X 1536, DDC2B
• AC Power Adapter Plug(s): NEMA 1-15P North America
• AC Power Adapter Input Specs (V / Hz / A): 100-240V / 50/60Hz / 0.5A
• AC Power Adapter Output Specs (V / A): 5.3V / 2.4A
• AC Power Adapter Cord Length (ft.): 5
• AC Power Adapter Cord Length (m): 1.5
• Power Source Type: AC Adapter
• LED Indicators: Online Selected (Orange)
• Shipping Dimensions (hwd / in.): 3.50 x 9.80 x 8.70
• Shipping Weight (lbs.): 2.20
• Unit Dimensions (hwd / in.): 1.700 x 7.900 x 2.900
• Unit Weight (lbs.): 1.50
• BTUs: 7.1694 BTU/Hr
• Port Control: Push Buttons, Hotkeys
• IP Remote Access: No
• Number of Ports: 4
• PC/Server Connections: USB; VGA
• Side A - Connector 1: (4) HD15 (MALE)
• Side A - Connector 2: (4) USB B (FEMALE)
• Side B - Connector 1: (1) HD15 (FEMALE)
• Side B - Connector 2: (2) USB A (FEMALE)
• Computer Keyboard and Mouse Interface: USB
• Computer Monitor Interface: VGA
• Console Keyboard and Mouse Interface: USB
• Console Monitor Interface: VGA
• USB Specification: USB 2.0 (up to 480 Mbps)
• NIAP-Certified Secure: No
• Number of Users: 1
• Autoscan (Y,N): Y
• Autoscan Duration: 11 TO 99 SECONDS; USER-DEFINEABLE
• Product Warranty Period (Worldwide): 3-year limited warranty
