Out of Stock
Condition: New

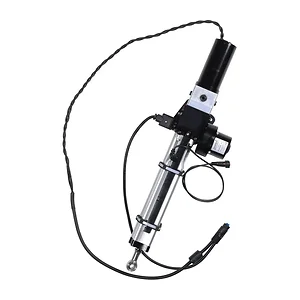

Garmin Class B Compact v2 Drive Unit
Model: 010-12029-01The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.
Specifications| Dimensions (WxHxD, centered) | 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm) |
| Drive unit type | integrated hydraulic linear |
| Stroke length | 10" (254 mm) |
| Maximum thrust | 1,610 lbs (730 kg) |
| Supply voltage | 10V to 30 V (regulated to 12V by the ECU) |
| Average clutch current at 12V | 1 Amp |
| Average motor current at 12V | 2-4 Amps |
| Operating temperature | -15° C to 50° C |
Garmin 010-12029-01 Class B Compact v2 Drive Unirt
