Product Overview

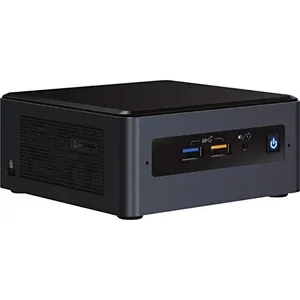

Intel System BOXNUC8i7BEHGA1 Core i7-8559U 2TB 32GB Windows 10 Home RetailEssentialsProduct Collection Intel NUC Mini PC with 8th Generation Intel Core Processors Code Name Products formerly BEAN CANYON Board Form Factor UCFF (4" x 4") Socket Soldered-down BGA Internal Drive Form Factor M.2 and 2.5" DriveNumber of Internal Drives Supported 2 Lithography 14 nm TDP 28 W DC Input Voltage Supported 12-19 VDC Pre-Installed Operating System Windows 10, 64-bit Processor Included Intel Core i7-8559U Processor (8M Cache, up to 4.50 GHz)Supplemental Information Embedded Options Available No Description Other features: 32GB Intel Optane Memory M.2 module pre-installed, 2TB HDD, Windows 10 x64 Home, includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C also includes microSDXC card slot, dual microphonesMemory and Storage Included Storage 32GB Intel Optane Memory, 2TB HDDIncluded Memory 32GB Intel Optane Memory + 1x 8GB DDR4-2400Max Memory Size (dependent on memory type) 32 GB Memory Types DDR4-2400 1.2V SO-DIMM Max Number of Memory Channels 2 Max Memory Bandwidth 38.4 GB/s Max Number of DIMMs 2 ECC Memory Supported NoProcessor Graphics Integrated Graphics Yes Graphics Output HDMI 2.0a USB-C (DP1.2) Number of Displays Supported 3Expansion Options PCI Express Revision Gen3 PCI Express Configurations M.2 slot with PCIe X4 lanes Removable Memory Card Slot microSDXC with UHS-I support M.2 Card Slot (storage) 22x42/80I/O Specifications Number of USB Ports 6 USB Configuration 2x front and 3x rear USB 3.1 Gen2 2x USB 2.0 via internal headers USB Revision 2.0, 3.1 Gen2 USB 2.0 Configuration (External + Internal) 0 + 2 USB 3.0 Configuration (External + Internal) 2B 2F + 0 Total Number of SATA Ports 2 Max Number of SATA 6.0 Gb/s Ports 2 Audio (back channel + front channel) 7.1 digital (HDMI mDP) L+R mic (F) Integrated LAN Intel Ethernet Connection I219-V Integrated Wireless Intel Wireless-AC 9560 + Bluetooth 5.0 Integrated Bluetooth Yes Consumer Infrared Rx Sensor Yes Additional Headers CEC, 2x USB2.0, FRONT_PANEL Number of Thunderbolt 3 Ports1Advanced Technologies Intel Optane Memory Supported Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel vPro Platform Eligibility No TPM No Intel HD Audio Technology Yes Intel Rapid Storage Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Platform Trust Technology (Intel PTT) YesSecurity and ReliabilityIntel AES New Instructions YesItem Dimension (L"xW"xH")6 x 5 x 5Weight2.93 lbsWarranty Information3-year limited
