Product Overview

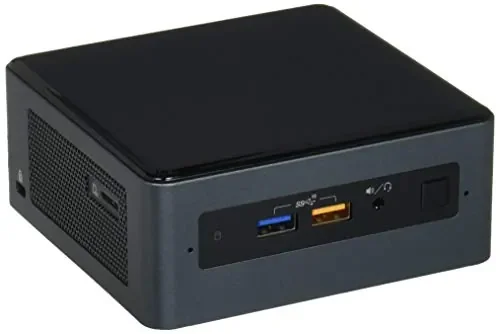

The Intel NUC kit features a customizable board and chassis that are ready to accept a wide variety of memory, storage, and operating systems. For businesses, students, educators, and DIYers. FeaturesReliable processorIntel technologiesIncludesNUC Kit NUC8i3BEHPower AdapterIntegration PosterVESA Bracket with Four Wall Screws and Two Chassis ScrewsSpecificationsPorts: HDMITotal Number of USB Ports: 7Number of USB 2.0 Ports: 2Graphics: Iris Plus Graphics 655 DDR4 SDRAM IntelProcessor: i3-8109U 8th Gen 3 GHz Intel Core i3Number of Total Memory Slots: 2Number of USB 3.1 Ports: 2Memory: 32 GBWeight: 2.71 lbs- SKU: AZTY23008
Technical Specifications
Product Collection
Intel NUC Kit with 8th Generation Intel CoreTM Processors Code Name
Products formerly BEAN CANYON Board Form Factor
UCFF (4 inch x 4 inch) Socket
Soldered-down BGA Internal Drive Form Factor
M.2 and 2.5 inch Drive Number of Internal Drives Supported
2 Lithography
14 nm TDP
28 W DC Input Voltage Supported
12-19 VDC Processor Included
Intel Core TM i3-8109U Processor (4M Cache, up to 3.60 GHz) Embedded Options Available
No Description
Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C also includes microSDXC card slot, dual microphones Max Memory Size (dependent on memory type)
32 GB Memory Types
DDR4-2400 1.2V SO-DIMM Max number of Memory Channels
2 Max Memory Bandwidth
38.4 GB/s Max number of DIMMs
2 ECC Memory Supported
No Integrated Graphics
Yes Graphics Output
HDMI 2.0a USB-C (DP1.2)
