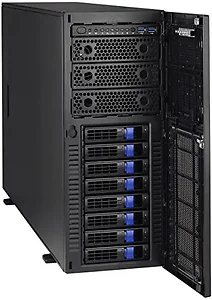

Technical Specifications
System
Form Factor
4U Tower
Chassis Model
FT48T
Motherboard Name
S7105AGM2NR-2T Front Panel
Buttons
(1) RST / (1) ID / (1) PWR w/ LED
LEDs
(1) HDD / (2) LAN / (1) ID / (1) System Event
I/O Ports
(2) USB 3.0 ports External Drive Bay
Qty / Type
(3) 5.25" device bays + (8) 3.5"/2.5" Hot-Swap SSD/HDD
HDD Backplane Support
SATA 6.0Gb/s
Supported HDD Interface
(8) SATA 6Gb/s System Cooling Configuration
Redundancy
Yes
FAN
(3) hot-swap 12cm fans
Heat Sink
(2) Passive CPU Heat sinks Power Supply
Type
RPSU
Input Range
AC 100-127V/24A / AC 220-240V/10A
Frequency
47-63 Hz
Output Watts
2,000 Watts (100-127Vac input) / 1,968 Watts (220-240Vac input)
Efficiency
80 plus Platinum
Redundancy
1+1
Serviceability
Hot-swap Processor
Qty / Socket Type
(2) LGA3647
Supported CPU Series
Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage
Max up to 205W
System Bus
Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset
PCH
Intel C621 Memory
Supported DIMM Qty
(6)+(6) DIMM slots
DIMM Type / Speed
DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
Capacity
Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR
Memory channel
6 Channels per CPU
Memory voltage
1.2V Expansion Slots
PCI-E
(5) PCI-E Gen3 x16 slots (Full-height, Full-length, Double-width) / (1) PCI-E Gen3 x16 slot (Full-height, Full-length, Single-width) / (5) PCI-E Gen3 x8 slots (Full-height, Full-length) LAN
Qty / Port
(2) 10GbE ports, (1) GbE port dedicated for IPMI
Controller
Intel X550-AT2
PHY
Realtek RTL8211E Storage
SATA
Connector
(2) SATA-DOM
Controller
Intel C621
Speed
6.0 Gb/s
RAID
RAID 0/1/10/5 (Intel RSTe)
sSATA
Connector
(2) Mini-SAS HD (8-ports)
Controller
Intel C621
Speed
6.0 Gb/s
RAID
RAID 0/1/10/5 (Intel RSTe)
NVMe
Connector (M.2)
(2) 22110/2280 (by PCI-E and SATA interface) Graphic
Connector type
D-Sub 15-pin
Resolution
Up to 1920x1200
Chipset
Aspeed AST2500 I/O Ports
USB (2)
USB3.0 ports (at rear) / (2) USB3.0 ports (at front)
VGA
(1) D-Sub 15-pin port
Audio
2.1
RJ-45
(2) 10GbE ports, (1) GbE dedicated for IPMI
Others
ID LED TPM (Optional)
TPM Support
Please refer to our TPM supported list. System Monitoring
Chipset
Aspeed AST2500
Temperature
Monitors temperature for CPU and memory and system environment
Voltage
Monitors voltage for CPU, memory, chipset and power supply
LED
Over temperature warning indicator / Fan and PSU fail LED indicator
Others
Watchdog timer support Server Management
Onboard Chipset
Onboard Aspeed AST2500
AST2500 iKVM Feature
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface BIOS
Brand / ROM size
AMI / 32MB
Feature
Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1 Operating System
OS supported list
Please refer to our AVL support lists. Regulation
FCC (SDoC)
Class A
CE (DoC)
Class A
CB/LVD
Yes
RCM
Class A
VCCI
Class A Operating Environment
Operating Temp.
10 o C to 35 o C (50 o F to 95 o F)
Non-operating Temp.
- 40 o C to 70 o C (-40 o F to 158 o F)
In/Non-operating Humidity
90%, non-condensing at 35 o C
