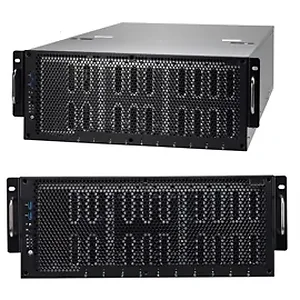

Tyan B7079F77CV10HR-2T-N System B7079F77CV10HR-2T-N 4U RM E5-2600v3/v4 LGA2011 10x2.5/3.5 inch Hot Swap 2000W Retail

System
Form Factor: 4U Rackmount
Chassis Model: FT77C
Motherboard: S7079GM2NR-2T-N Front Panel
Buttons: (1) RST / (1) ID / (1) PWR w/ LED
LEDs: (1) HDD / (2) LAN / (1) ID / (1) IPMI/Warning
I/O Ports: (2) USB ports External Drive Bay
Type / Qty: 3.5"/2.5" Hot-Swap / (10)
HDD backplane support: SAS / SATA 6.0Gb/s
Supported HDD Interface: (10) SATA 6Gb/s System Cooling Configuration
FAN: (5+1) hot-swap 12cm fans Power Supply
Type: RPSU
Input Range: 100-127V AC / 200-240V AC
Output Watts: 2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input)
Efficiency: 80 plus Platinum
Redundancy: 2+1 Processor
Socket Type / Qty: LGA2011 / (2)
Supported CPU Series: Intel Xeon Processor E5-2600 v3/v4 product families
Thermal Design Power (TDP) wattage: Max up to 160W
System Bus: Up to 9.6/ 8.0/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support Chipset
PCH: Intel C612
Switch IC: (4) PLX PEX8747 Memory
Supported DIMM Qty: (12)+(12) DIMM slots
DIMM Type / Speed: RDIMM DDR4 2400/2133/1600 / LRDIMM DDR4 2400/1866 / LRDIMM 3DS DDR4 2400/1866 (Up to 2400 speed support only w/E5-2600 v4)
Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB LRDIMM 3DS Follow latest Intel DDR4 Memory POR
Memory channel: 4 Channels per CPU
Memory voltage: 1.2V Expansion Slots
PCI-E: (8) PCI-E Gen3 x16 slots / (2) PCI-E Gen3 x8 slots(one for mezzanine card) / (3) PCI-E Gen2 x1 slots
Pre-install TYAN Riser Card: M2210-L8-1F, PCI-E Gen3 x8 slot (left) LAN
Port Qty: (2) 10GbE ports (1 port shared with IPMI)
Controller: Intel X540-AT2 Storage
SATA Connector: (2) Mini-SAS (8-ports) + (2) SATA (totally support 10 ports)
SATA Controller: Intel C612
SATA Speed: 6.0 Gb/s
SATA RAID: RAID 0/1/10/5 (Intel RST) Graphic
Connector type: (1) Display/USB 2.0 port
Resolution: Up to 1920x1200
Chipset: Aspeed AST2400 I/O Ports
USB: (2) USB3.0/2.0 ports (at front)
VGA: (1) Display/USB2.0 port (via a dongle cable)
RJ-45: (2) ports System Monitoring
Chipset: Aspeed AST2400
Temperature: Monitors temperature for CPU and memory and system environment
Voltage: Monitors voltage for CPU, memory, chipset and power supply
LED: Over temperature warning indicator / Fan and PSU fail LED indicator Server Management
Onboard Chipset: Onboard Aspeed AST2400
AST2400 IPMI Feature: IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2400 iKVM Feature: 24-bit high quality video compression / 10/100 Mb/s MAC interface BIOS
Brand / ROM size: 16MB
Feature: SMBIOS 2.7/PnP/Wake on LAN / ACPI 3.0 power management/PXE boot Operating System
OS supported list: Please refer to our Intel OS supported list. Regulation
FCC (DoC): Class A
CE (DoC) : Yes
C-Tick: Yes
VCCI: Yes
Safety: CB/ LVD Environment
Operating Temp. : 10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temp. : - 40^oC to 70^oC (-40^oF to 98^oF)
In/Non-operating Humidity: 90%, non-condensing at 35^oC RoHS
RoHS 6/6 Compliant: Yes
