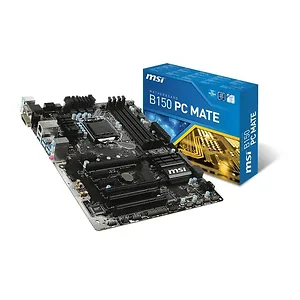

Msi B150 PC MATE LGA1151/ Intel B150/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.1/ M.2&SATA Express/ A&GbE/ ATX Motherboard

UNMATCHED MEMORY PERFORMANCE AND STABILITY
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.

FAST STORAGE WITH SATA EXPRESS
SATA Express offers a solution in high speed storage through PCI-Express, providing more bandwidth for the latest generation SSDs up to 16 Gb/s.

PUSH YOUR SSD HARDER WITH M.2
M.2 doesnt need any power- or signal-cables and with a very small footprint M.2 is the storage connector of the future replacing traditional HDDs/SSDs.

Socket
1151

CPU (Max Support)
i7

Chipset
Intel B150

DDR4 Memory
2133 MHz

Memory Channel
Dual

DIMM Slots
4

Max Memory (GB)
64

PCI-Ex16
2

PCI-E Gen
Gen3

PCI-Ex1
3

PCI
2

SATA Express
1

SATAIII
6

M.2 port
1

USB 3.1 ports(Front)
2(Gen1)

USB 3.1 ports (Rear)
4(Gen1)

USB 2.0 ports (Front)
4

USB 2.0 ports (Rear)
2

Audio ports (Rear)
3

VGA
1

HDMI
1

DVI
1

DirectX
DX12

Form Factor
ATX

CrossFire
Y

Item Dimension (L inchxW inchxH inch)
13.8 x 10.7 x 3.6

Weight
4.50lb

Warranty Information
3 years
