Out of Stock
Condition: New
General InformationSwitched Rack Power Distribution Units (PDUs) provide advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management.Technical InformationPDU Type: SwitchedInput Receptacles: NEMA L5-30POutput Receptacles: 16 x NEMA 5-20RPower DescriptionInput Voltage: 120 V ACOutput Voltage: 120 VInput Current: 30 APhysical CharacteristicsMounting Orientation: HorizontalPlacement: RackRack Height: 2UHeight: 3.5"Width: 17.5"Depth: 4.5"Weight (Approximate): 9.92 lbMiscellaneousPackage Contents: Rack PDU, Switched, 2U, 30A, 120V, (16)5-20 Cord Retention Bracket(s) Horizontal Mounting Brackets Installation Guide User Manual Environmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: REACHWarrantyLimited Warranty: 2 Year
Output
Nominal Output Voltage: 120V
Maximum Total Current Draw: 30
Output Connections: (16) NEMA 5-20R (Battery Backup) Input
Nominal Input Voltage: 100V , 120V
Input frequency: 50/60 Hz
Input Connections: NEMA L5-30P
Cord Length: 3.05meters
Acceptable Input Voltage: 100-120VAC
Number of Power Cords: 1
Load Capacity: 2880VA
Maximum Input Current: 30A
Regulatory Derated Input Current (North America): 24A Rack Height
2U Color
Black Environmental
Operating Environment: 0 to 45oC
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0-3000meters
Storage Temperature: -25 - 65oC
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0-15000meters Conformance
Approvals: cUL Listed, CSA, FCC Part 15 Class A, ICES-003, Industry Canada, UL 60950, UL Listed Sustainable Offer Status
RoHS: Compliant
REACH: REACH: Contains No SVHCs
Battery Directive: Compliant
Battery Notes: ts_Battery_Notes Item Dimension (L inchxW inchxH inch)
15 x 15 x 6
Weight
14.40 lb
Warranty Information
2 Years

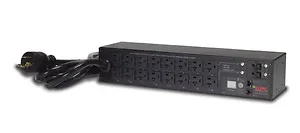

Apc - Schneider Electric AP7902B RACK PDU, SWITCHED, 2U, 30A, 120V, (16)5-20
