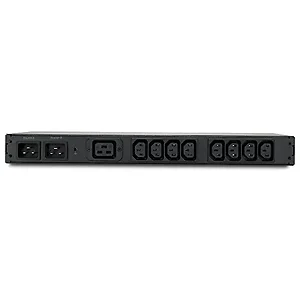

Apc - Schneider Electric AP4423 APC UPS Ap4423 RACK ATS 230V 16A C20 IN (8) C13 (1) C19 OUT Bare
Special Order Ships in 1-2 weeks Condition: New
$1,587.55$2,143.19
AUTHORIZED
Free Shipping for this Item
Product Overview
The APC by Schneider Electric Rack Automatic Transfer Switch (ATS) provides reliable, redundant power to single-corded equipment loads, such as servers. The Rack ATS has two input power cords supplying power to the connected loads. If the primary source becomes unavailable or out of the selected range, the Rack ATS will seamlessly source power from the secondary source without interrupting critical loads. The Rack ATS has built-in network connectivity, which allows for remote management via Web, Telnet, SNMP, SSH or StruxureWare Data Center Expert interfaces.
Technical Specifications
Output -Nominal Output Voltage: 230V -Overload Protection: No -Maximum Total Current Draw: 16 -Output Connections: (1) IEC 320 C19 (Battery Backup) (8) IEC 320 C13 (Battery Backup) Input -Nominal Input Voltage: 230V -Input frequency: 50/60 Hz -Input Connections: IEC-320 C20 -Maximum Input Current: 20A -Maximum Line Current: 20A Physical -Rack Height: 1U -Color: Black Environmental -Operating Temperature: -5 to 45oC -Operating Relative Humidity: 5 - 95 % -Operating Elevation: 0-3000meters -Storage Temperature: -25 to - 65 oC -Storage Relative Humidity: 5 - 95 % -Storage Elevation: 0-15000meters Conformance -Approvals: cUL Listed, CE, EN 55022 Class A, FCC Part 15 Class A, UL Listed Sustainable Offer Status -RoHS: Compliant -REACH: Contains No SVHCs -Battery Directive: Compliant -Other Environmental Compliance: China RoHS Item Dimension (L inchxW inchxH inch) 25 x 15 x 5 Weight 14.00lb Warranty Information 2 years
Product Details
Manufacturer:
Model Number:
ASIN:
UPC:
Condition:
Weight:
Dimensions:
Updated:
Added:
TAA Compliant:
Country of Origin:
APC - Schneider Electric
AP4423
B075YGHLCT
731304333425
New
8.2 lbs
24 X 5 X 14
Apr 12, 2026
Oct 04, 2017
Yes
Philippines
Product Identifiers:
Brand: Apc - Schneider Electric •
Part #: AP4423 • UPC: 731304333425 • ASIN: B075YGHLCT • TAA Compliant
Apc - Schneider Electric AP4423 APC UPS Ap4423 RACK ATS 230V 16A C20 IN (8) C13 (1) C19 OUT Bare
