Is the AFL-12A-N26/R/2G-R11 in stock?

The AFL-12A-N26/R/2G-R11 is currently out of stock. Please check back or request a quote for availability.

Add price you are willing to pay for the product: (AFL-12A-N26/R/2G-R11)

SKU: YDG1TLYCWN | Mfg. Part: AFL-12A-N26/R/2G-R11 |

1 Reviews | Share Make an offer

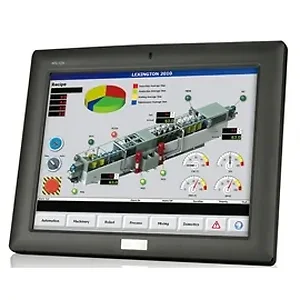

Iei Technology AFL-12A-N26/R/2G-R11 IEI AFL-12A-N26 12.1" Fanless Touchscreen System

Name: AFL-12A-N26/R/2G-R11 Iei Technology IEI AFL-12A-N26 12.1" Fanless Touchscreen System
Brand: Iei Technology
SKU: YDG1TLYCWN
Price: 972.29 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Out of Stock
Condition: New

$972.29 ~~$1,312.59~~

Free Shipping for this Item

Product Overview

The IEI AFL-12A-N26 is a compact and robust 12.1-inch fanless touchscreen system powered by an Intel Atom N2600 dual-core processor. This system is designed for industrial applications, offering reliable performance and versatile mounting options. With its vibrant display and touch capabilities, it is an ideal solution for interactive kiosks, control panels, and various other applications.

Technical Specifications

LCD Size: 12.1 inches
Max Resolution: 1024 x 768
Brightness: 500 cd/m²
Contrast Ratio: 700:1
LCD Color: 262K
Pixel Pitch: 0.240 (H) x 0.240 (V) mm
Viewing Angle: 160° H / 160° V
Backlight MTBF: 50,000 hours (LED Backlight)
CPU: Intel Atom N2600 dual-core 1.6 GHz
Chipset: Intel NM10
RAM: 2GB DDR3
I/O Ports: 1 x 9-28V Lockable DC Jack
Watchdog Timer: Software programmable, supports 1255 sec. system reset
Audio: AMP 2W + 2W (internal speaker)
Wireless: 1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini card interface)
Touch Screen: 5-wire resistive type
Drive Bay: 1 x 2.5” SATA HDD, 1 x mSATA SSD
Construction Material: ABS + PC Plastic front frame
Mounting Options: Panel, Wall, Rack, Stand, Arm (VESA 75mm x 75mm / 100mm x 100mm)
LED Function: 1 x Power on/off LED on front panel
