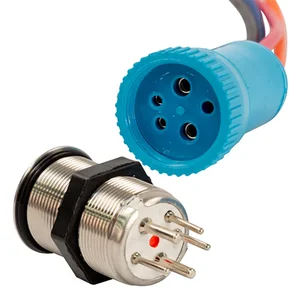

Bluewater 9059-2113-1 22mm Waterproof Push Button Switch - Momentary - LED Lights

22mm Waterproof Push Button Switch - Momentary - LED Lights

This modern push button switch features a sleek stainless-steel design, perfect for enhancing any dashboard. The momentary contact function can be toggled between off and on, with visual indicators for clarity.

With an IP69K waterproof rating, it is built to withstand challenging environments. The blue LED backlight ensures visibility at night, while a red light indicates when the switch is activated.

Specifications:

• Function: Off-(On) (momentary contact)
• LED Colors: Blue for off, Red for on
• Power Rating: 15A at 12-24VDC
• Material: Durable stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

To install, drill a 22mm hole in your chosen material (up to 6mm thick). Connect the three contacts labeled for ease, and wire the LED connections as instructed.
