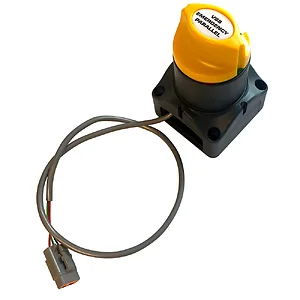

Bep Marine 701-MDVS-D 275A Motorized Dual Operation VSS with Deutsch Connector

275A Motorized Dual Operation Voltage Sensitive Switch (VSS) - With Deutsch Connector
<\/strong><\/p>

The 275A Voltage Sensitive Switch (VSS) intelligently monitors and optimizes the charging of connected battery banks based on their voltages. It allows for seamless integration or isolation of two battery banks depending on the availability of a charging source like an alternator or battery charger. In addition, this VSS features a remote-activated high current emergency parallel connection for added versatility.<\/p>

Key Features:<\/strong><\/p>

• Integrated Deutsch Connector for secure connect/disconnect
• Supports dual battery sensing for optimal performance
• Manual override option for user control
• Constructed for durability in marine applications with tinned copper conductors and high-temperature reinforced plastics
<\/ul>

Operation Characteristics:<\/strong><\/p>

• The VSS activates when the voltage on either battery reaches 13.7 volts and deactivates based on specific voltage thresholds to maintain battery health.
• Includes a remote emergency parallel function allowing users to temporarily connect dual batteries for 10 minutes, enhancing operational flexibility.
<\/ul>

Specifications:<\/strong><\/p>

• Continuous Rating: 275 Amps DC
• Intermittent Rating: 455 Amps DC
• Cranking Rating: 1250 Amps DC
• Voltage Rating: 9.5 - 32 Volts
• Operation: On/Off
• Mounting: Recessed or Surface
• Ignition: Protected
• Stud Size: 2 x 10mm (3/8-inch)
• Power Draw: Off 12mA; On 15mA; 120mA for 3 seconds at 12V nominal
<\/ul>
