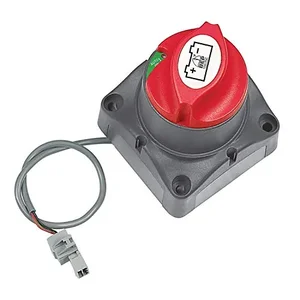

Bep Marine 701-MD BEP 275A Remote Battery Isolation Switch

Remote Battery Isolation Switch - 275A Continuous

The BEP Remote Battery Isolation Switch allows for convenient remote operation, making it ideal for managing increased electrical loads on modern boats. Its design facilitates close proximity installation to the battery, which minimizes cable lengths and sizes. This results in significant cost and weight savings associated with copper battery cables. It is also suitable for isolation of both bow and stern thrusters.

Key Features:

• Remote operation capability
• Can be mounted near the battery, reducing cable lengths and sizes
• Lower installation labor costs due to shorter battery cable runs
• Manual override option compliant with CE/ABYC standards
• Power draw of 12mA when switch is off
• LED status indicator for remote switch
• Compatible with standard BEP battery switches in terms of specifications and mounting
• Interchangeable labeling system supported (Item # 713 or 715)

Specifications:

• Dimensions (LxWxH): 2.7" x 2.7" x 4"
• Continuous Rating (A DC): 275
• Intermittent Rating (A DC): 455
• Cranking Rating (A DC): 1250
• Voltage (V DC): 9.5-32
• Operation: On/Off
• Stud Size: 2x (3.8"/10mm)
