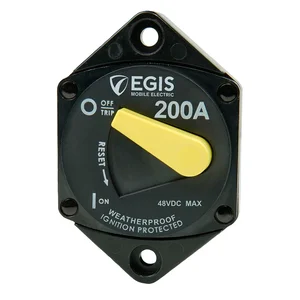

Egis Mobile Electric 4707-200 200A Egis Panel Mount Circuit Breaker - 87 Series

200A Egis Panel Mount Circuit Breaker - 87 Series

This 200A Egis Panel Mount Circuit Breaker is designed to safeguard electrical circuits against short circuits and thermal overloads, while providing reliable manual circuit switching for live load applications. Built with a weatherproof casing, it ensures durable circuit protection in various environmental conditions. It features high-voltage interrupt current capabilities, allowing for safe operation with large series or parallel-connected battery banks. The convenient round cutout mounting style allows for straightforward installation into chosen panels.

Applications:

• Safeguards electrical circuits from short-circuit events and over-current loads, preventing insulation overheating and damage.
• Combines automatic circuit protection and manual switching in a compact, reliable solution.
• Facilitates circuit isolation and maintenance of load circuits with integral protection, easily mountable near battery systems.

Specifications:

• Continuous Current Amps: 200
• Max Voltage: 48
• Cycling Endurance: 2,000
• Interrupt Current @14 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP66
