Lenco 15067-001 102XD Heavy-Duty 24V Actuator

Lenco 102XD Heavy-Duty Actuator - 24V - 4.25" Stroke

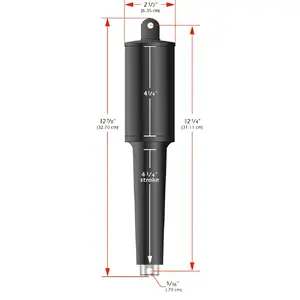

The Lenco 102XD Actuator is designed for use with Trolling Tab systems sold after 2000 as well as OEM applications. With a stroke length of 4.25 inches, the actuator measures 13.25 inches overall (tip to tip). This instant response electric actuator is crafted from high-impact glass fiber filled, UV-resistant nylon material and features 316 stainless steel tubing for enhanced durability.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design for enhanced reliability.
• Improved pressure-tight torx screws.
• Integrated wiper seal at actuator base to prevent leaks.
• Molded-in brass thrust bearing for reduced wear.
• Thicker and sturdier motor housing walls.
• Enhanced O-Ring design for consistent sealing.
• Over-molded cable for a tighter and stronger seal.
• Upper mounting bracket with gland seal.

Features:

• Lenco's ballscrew design offers greater reliability and double the power compared to traditional hydraulics.
• Capable of easily pushing 500 pounds with its robust high-torque actuator motor.
• Equipped with waterproof "Plug & Play" Deutsch connectors to prevent water intrusion.
• Operates at 24 volts for potent performance.
• Comes with 5/16" mounting hardware for easy installation.
• Includes a 6-foot cable for flexible setup.
