Lenco 15062-001 XD 24V Heavy Duty Actuator 2.25"

Lenco XD Heavy Duty Actuator - 24 Volt - 2-1/4" Stroke

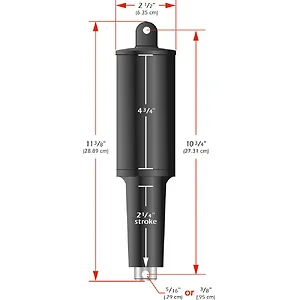

The Lenco XD Actuator is designed for superior performance with HD, XD, and high-performance tabs. With a stroke length of 2.25 inches and an overall length of 11 3/8 inches, this instant response electric actuator is crafted from high-impact, glass fiber-filled, ultraviolet-resistant nylon combined with 316 stainless steel tubing, ensuring durability in tough conditions.

Specifications:

• Equipped with Anti Extrusion Ring (AXR) seal stabilization system.
• Robust top cap and mounting clevis design.
• Pressure-tight Torx screws for improved strength.
• Integrated wiper seal at the actuator base.
• Molded-in brass thrust bearing for enhanced reliability.
• Thicker motor housing wall for additional durability.
• Advanced O-Ring design ensures a consistent seal.
• Over-molded cable design provides a strong, watertight connection.
• Upper mounting bracket features a gland seal.

Features:

• Lenco's ballscrew design delivers unmatched reliability and power, outperforming typical hydraulic systems.
• This actuator motor can effortlessly push 500 pounds.
• Connections utilize waterproof "Plug & Play" Deutsch connectors to prevent water intrusion.
• Operates on 24 volts.
• Includes 5/16" mounting hardware for easy installation.
• Comes with a 6-foot cable for flexible application.
