Lenco 15058-001 12V Extreme Duty Actuator - 2.25" Stroke, Compact Design

Lenco 12V Extreme Duty Actuator - 2.25" Stroke, Compact Design

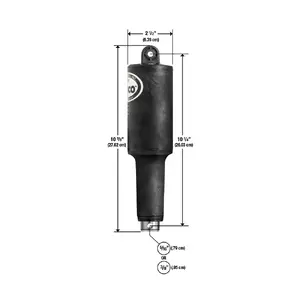

The Lenco Extreme Duty Actuator is engineered for OEM specific kits and applications with restricted space. Measuring just 10 ^7/8 inches in overall length, it delivers a 2.25-inch stroke. This actuator features an instant response system made from high-impact, glass-fiber filled nylon, which is resistant to UV light and complemented by 316 super buff stainless steel tubing.

Specifications:

• Equipped with an Anti Extrusion Ring (AXR) seal stabilization system.
• Enhanced top cap and mounting clevis design for improved durability.
• Robust pressure-tight Torx screws.
• Includes an integrated wiper seal at the actuator base.
• Molded-in brass thrust bearing for increased reliability.
• Reinforced motor housing for added strength.
• Advanced O-Ring design for consistent sealing performance.
• Over-molded cable that ensures a reliable and tight seal.
• Upper mounting bracket fitted with a gland seal.

Features:

• Utilizes a reliable ballscrew design that is more powerful compared to traditional hydraulics.
• Capable of pushing loads of up to 500 pounds with ease.
• Incorporates waterproof "Plug & Play" Deutsch connectors to prevent water intrusion.
• Operates on 12 volts.
• Includes 3/8" mounting hardware for easy installation.
• Features a 6-foot cable for flexible setup.

WARNING: This product can expose you to chemicals such as di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
