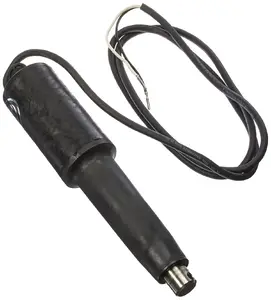

Lenco 15060-001 102XD Extreme Duty Electric Actuator - 12V - 4.25" Stroke

Lenco 102XD Electric Actuator - 12 Volt - 4.25" Stroke with Mounting Hardware

The Lenco 102XD Electric Actuator is designed for use with Trolling Tab systems manufactured after 2000 and other OEM applications. It features an impressive 4.25-inch stroke with an overall length of 13 inches. This instant response actuator is constructed from high-impact, glass fiber-filled, UV-resistant nylon, along with durable 316 stainless steel tubing.

Specifications:

• Anti Extrusion Ring (AXR) seal stabilization system for improved performance.
• Enhanced top cap and mounting clevis design for added strength.
• Pressure-tight Torx screws for reliable assembly.
• Integrated wiper seal located at the actuator base to prevent debris ingress.
• Molded-in brass thrust bearing for smooth operation.
• Thicker and stronger walls in the motor housing for durability.
• Improved O-ring design ensures a more consistent seal.
• Over-molded cable for a stronger, watertight connection.
• Upper mounting bracket equipped with a gland seal to protect against moisture.

Features:

• Reliable ballscrew design provides superior performance, twice as powerful as standard hydraulic systems.
• High-torque actuator motor capable of pushing up to 500 pounds with ease.
• Waterproof
