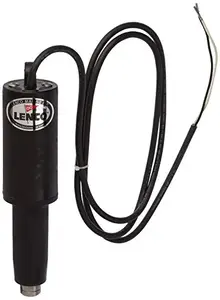

Lenco 15056-001 101XD Heavy Duty Electric Actuator - 12V - 2.25" Stroke

Lenco 101XD Heavy Duty Electric Actuator - 12 Volt - 2.25 Inch Stroke

The Lenco 101XD Actuator is specifically designed for use with HD, XD, High Performance, and Super Strong tabs. With a stroke length of 2.25 inches and an overall length of 11 3/8 inches from tip to tip, this actuator delivers quick and reliable operation. Constructed from high-impact, glass-fiber-filled nylon material that is resistant to UV damage, it features robust 316 stainless steel tubing for long-lasting performance.

Key Specifications:

• Incorporates an Anti Extrusion Ring (AXR) seal stabilization system for improved integrity.
• Upgraded design features a stronger top cap and mounting clevis.
• Equipped with pressure-tight Torx screws for enhanced durability.
• Includes an integrated wiper seal at the base for better sealing.
• Utilizes a molded-in brass thrust bearing design for extended lifespan.
• Thicker motor housing wall for greater strength and longevity.
• Refined O-Ring design for a more reliable seal.
• Over-molded cable for superior water-tight performance.
• Comes with an upper mounting bracket with gland seal.
