Lenco 15063-001 101XD 24V Heavy-Duty Actuator - 2.25" Stroke

Lenco 101XD Actuator - 24 Volt - 2.25" Stroke

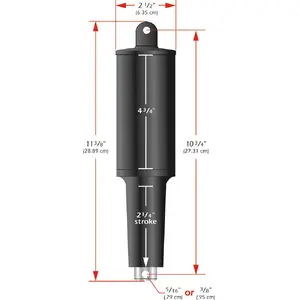

The Lenco 101XD Actuator is designed for heavy-duty applications, particularly suited for HD, XD, high-performance, and super strong tabs. With a stroke length of 2.25 inches and an overall length (tip to tip) of 11 3/8 inches, this actuator is built for instant response and durability.

Constructed from high-impact, glass-fiber-filled, ultraviolet-resistant nylon, along with 316 stainless steel tubing, the 101XD is engineered to withstand harsh conditions.

Specifications:

• Features Anti Extrusion Ring (AXR) seal stabilization system.
• Enhanced top cap and mounting clevis design for increased strength.
• Utilizes improved pressure-tight torx screws.
• Includes integrated wiper seal at the actuator base.
• Incorporates molded-in brass thrust bearing design.
• Boasts thicker and stronger motor housing wall.
• Improved O-Ring design for reliable sealing.
• Over-molded cable ensures better sealing against moisture.
• Upper mounting bracket equipped with gland seal.

Features:

• Lenco's ballscrew design provides reliable performance, offering double the power compared to traditional hydraulic systems.
• The actuator's powerful motor can easily handle loads up to 500 pounds.
• Waterproof "Plug & Play" Deutsch connectors prevent water intrusion, ensuring long-lasting operation.
• Powered by 24 Volts.
• Comes with 3/8" mounting hardware and a 6-foot cable for easy installation.
