Lenco 15054-001 101 12V Electric Actuator with 2.25" Stroke

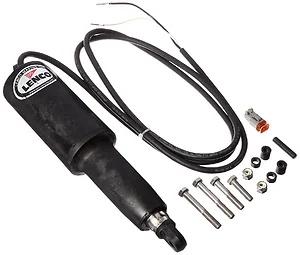

Lenco 101 Electric Actuator - 12 Volt - 2.25" Stroke with Mounting Hardware

The Lenco 101 Electric Actuator is designed for Standard, Edge Mount, and Standard Performance kits with a 2.25-inch stroke length. It boasts an overall length of 12.5 inches from tip to top. Crafted from high-impact glass fiber-filled, ultraviolet-resistant nylon material, this actuator features robust 316 stainless steel tubing for outstanding durability.

Specifications:

• New Anti Extrusion Ring (AXR) seal stabilization system.
• Enhanced top cap and mounting clevis design for superior strength.
• Improved pressure-tight torx screws for reliability.
• Integrated wiper seal at the actuator base.
• Molded-in brass thrust bearing for better performance.
• Thicker motor housing wall enhances durability.
• Enhanced O-Ring design for a consistent seal.
• Over-molded cable provides a stronger, tighter seal.
• Upper mounting bracket includes a gland seal.

Features:

• The ballscrew design offers greater reliability and is twice as powerful as standard hydraulics.
• Tough, high-torque motor can easily push weights up to 500 pounds.
• Waterproof "Plug & Play" Deutsch connectors eliminate water intrusion risk.
• Operating voltage: 12 Volt.
• Includes 5/16" mounting hardware.
• 6-foot cable length for versatile installation.
