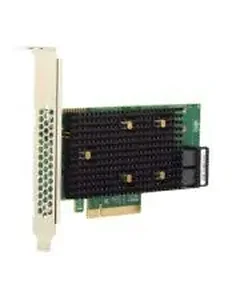

Broadcom 05-50077-03 HBA 9500-8i Tri-Mode - storage controller - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8

Lifecycle
Active Typical Power
5.96W Host Bus Type
x8 lane PCI Express 4.0 Devices Supported
SAS/SATA: 1024, NVMe: 32 Internal Connectors
1 x8 SFF-8654 (SlimSAS) Internal Ports
8 Operating Temperature
0^oC to 55^oC OS Support
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD I/O Controller
SAS3808 MTBF
> 5,000,000 hours at 40^oC Operating Humidity
20% to 80% Non-condensing Brackets
Full height and low profile Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 and 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) Item Dimension (L inchxW inchxH inch)
12 x 6 x 10

Weight
6.00 LB

Warranty Information
3 Years
