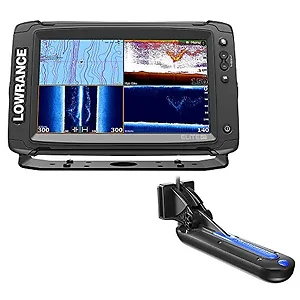

Lowrance 000-13277-001 Elite-9 Ti Combo w/TotalScan Transom Mount & Nav+ Chart

Elite-9 Ti Chartplotter/Fishfinder with TotalScan Transom Mount Transducer & Navionics+ Chart

The Lowrance Elite-9 Ti is a touchscreen fishfinder/chartplotter that matches popular high-end functions and features with powerful performance, all at an affordable price.

Sporting a 9-inch, high-resolution touchscreen display, Elite-9 Ti has your sonar needs covered with support for StructureScan® HD, Low/Med/High CHIRP and the TotalScan™ all-in-one transducer, which is included.

With built-in C-MAP charts and reliable Lowrance navigation technology, navigation is accurate and easy with Elite-9 Ti. Featuring integrated Bluetooth® and wireless connectivity, Elite-9 Ti allows you to download software updates directly to the unit.

HIGH RESOLUTION DISPLAY

Lowrance-exclusive high-resolution 9-inch LED backlit color display

EASY-TO-USE TOUCHSCREEN

Touchscreen provides fast fingertip acess to all Elite-9 Ti features

CHIRP SONAR, STRUCTURESCAN® HD AND DOWNSCAN IMAGING™

Top-of-the line sonar technologies provide the best possible view of the environment beneath your boat. StructureScan® HD requires TotalScan™ transducer.

TRACKBACK™

Scroll back through your sonar, SideScan or DownScan history to review structure or fish targets and mark the location with a waypoint.

INTERNAL GPS ANTENNA

Highly accurate built-in GPS antenna plus a detailed U.S. map.

OPTIONAL CHART UPGRADES

Optional Americas chart upgrades include Insight PRO by C-MAP, Lake Insight HD by C-MAP, C-MAP MAX-N, Navionics® HotMaps® Premium, Navionics + and Fishing Hotspots® PRO.

BUILT-IN WIRELESS CONNECTIVITY

Access to the GoFree™ Cloud where you can shop, purchase, download and immediately use Insight maps, and third-party maps from GoFree partnerS.

BOAT INTEGRATION AND SYSTEM CONTROL

Bluetooth® control of Power-Pole® shallow water anchors and SmartSteer™ control of Motorguider Xi5 Trolling Motors.

Specifications:

• Display: 9/ 228.6 mm (16:9)
• Resolution: 800W x 480H
• Backlighting: LED
• Power Output: Max 500W RMS
• Media Port:1 microSD slot
• Power Supply (Supply voltage): 12 vDC (10-17 vDC min-max)
• Current Draw [kW]: 12 W (0.9 A @ 13 vDC)
• Depth Alarm: Yes
• Shallow Alarm: Yes
• Temperature Readings: Yes
• Transducer Type: 9-pin Connection Totalscan Transom Mount Transducer
• Navigation Routes: 100
• Navigation Waypoint Storage: 3000
• Plot Trails: Up to 100 trails with up to 10,000 points per trail
• GPS Antenna Type: 10kHz Internal high-sensitivity WAAS/EGNOS/MSAS
• GPS Alarms: Yes
• Networking: NMEA 0183 and NMEA 2000®

Sonar:

• DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m
• SideScan Imaging at 455kHz: Max 300 ft./91 m to each side
• CHIRP Sonar High Range/200 kHz: 1000 ft / 305 m
• CHIRP Sonar Med Range/83 kHz: 1000 ft / 305 m

Available Sonar Frequencies:

• Low/Mid/High CHIRP
• 50/83/200 kHz Broadband
• 455/800 kHz SideScan/DownScan Imaging
